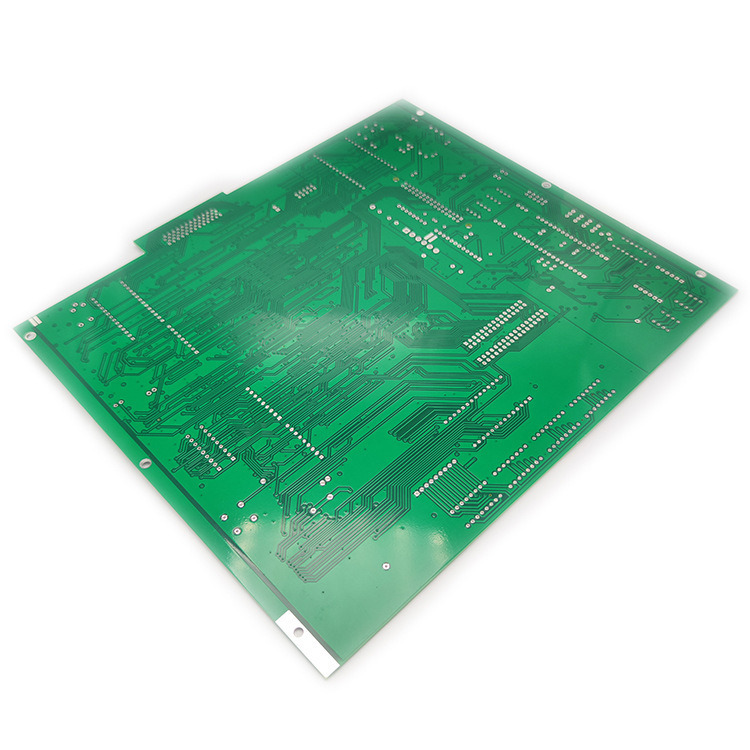

ENIG Finish High Frequency PCB Double Sided Printed Circuit Board UL Certification
Product Details:
| Brand Name: | High Frequency PCB |
| Certification: | ROHS, CE |
| Model Number: | Varies by goods condition |
Payment & Shipping Terms:
| Minimum Order Quantity: | 5 square meters |
|---|---|
| Price: | N/A |
| Delivery Time: | 14-15 Working Day |
| Payment Terms: | T/T,Western Union |
| Supply Ability: | 3000㎡ |
|
Detail Information |
|||
| Marterial: | Rogers FR4 | Min Line Space: | 3mil |
|---|---|---|---|
| Pcb Name: | Double Sided High Frequency PCB | Pcb Type: | Microwave RF Circuit Board |
| Layers: | 2 | Certifications: | ISO 9001, CE,ROHS |
| Finish: | Immersion Gold (ENIG) | Copper Weight: | Inner 1oz; Outer 2oz |
| Highlight: | ENIG Finish High Frequency PCB,UL Certification High Frequency PCB |
||
Product Description
Product Description:
The High Frequency PCB is a cutting-edge product specifically designed for applications that require high-frequency signal transmission, such as Microwave RF Circuit Boards. With a final foil of 1 Oz, this PCB ensures optimal conductivity for enhanced performance.
The finish of this High Frequency PCB is Immersion Gold (ENIG), which offers excellent corrosion resistance and solderability, making it ideal for demanding environments. The grey color of the PCB provides a sleek and professional appearance, suitable for various industrial applications.
One of the standout features of this High Frequency PCB is its advanced manufacturing process, which includes laser drilling for vias as small as 0.1mm. Laser drilling ensures precise and clean holes, essential for high-frequency signal integrity and impedance control.
In addition to laser drilling, this PCB also supports vias created through 0.2mm mechanic drilling, providing flexibility in design and manufacturing options. This dual via capability allows for optimized signal routing and ground plane configurations, essential for minimizing signal loss and interference.
Ground plane optimization is a key aspect of the High Frequency PCB, as it plays a crucial role in reducing electromagnetic interference and ensuring signal integrity. By strategically designing and placing ground planes, this PCB minimizes signal distortions and enhances overall performance.
Whether used in telecommunications, aerospace, or other high-frequency applications, this High Frequency PCB offers reliable and efficient signal transmission capabilities. Its precision manufacturing, laser drilling technology, and ground plane optimization make it a top choice for demanding projects requiring superior signal integrity.
Features:
- Product Name: High Frequency PCB
- Pcb Type: Microwave RF Circuit Board
- Surface: HASL-LF
- Min Via:
- 0.1mm Laser Drill
- 0.2mm Mechanic Drill
- Flammability: UL 94V-0
- Material: Rogers FR4
Technical Parameters:
| Finish | Immersion Gold (ENIG) |
| Certifications | ISO 9001, CE,ROHS |
| Pcb Name | Double Sided High Frequency PCB |
| Flammability | UL 94V-0 |
| Min Via | 0.1mm Laser Drill, 0.2mm Mechanic Drill |
| Material | Rogers FR4 |
| Surface | HASL-LF |
| Copper Overall | 0.5-5oz |
| Color | Grey |
| Pcb Type | Microwave RF Circuit Board |
Applications:
The High Frequency PCB is a top-quality product known for its exceptional performance in various applications. With its brand name originating from China, this product is designed to meet the high standards of electronic industries worldwide.
One of the key features of the High Frequency PCB is its utilization of high-frequency substrate materials, making it ideal for applications where signal integrity and efficiency are crucial. The product's ground plane optimization ensures minimal interference and maximum signal quality, making it suitable for high-frequency communication systems, radar systems, and other advanced electronic devices.
Thanks to its advanced manufacturing processes, including laser drilling technology, the High Frequency PCB offers precise and reliable performance. This makes it a preferred choice for industries that require high precision and accuracy in their electronic applications.
When it comes to product applications, the High Frequency PCB is widely used in various scenarios. Its fast delivery time of 15-20 working days ensures that customers receive their orders promptly, meeting urgent project deadlines. The flexible payment terms of cash make transactions convenient and efficient for buyers.
With a supply ability of 1000㎡, customers can rely on the High Frequency PCB to meet their volume requirements consistently.
Equipped with a surface finish of HASL-LF and a minimum line space of 5mil, the High Frequency PCB offers superior quality and performance. Customers looking for custom solutions can benefit from the OEM service offered by the brand.
For a premium finish, the High Frequency PCB features immersion gold (ENIG), adding durability and reliability to the product. This finish ensures long-lasting performance even in demanding environmental conditions.
Customization:
Product Customization Services for High Frequency PCB:
Brand Name: High Frequency PCB
Place Of Origin: China
Delivery Time: 15-20 Working Day
Payment Terms: ,T/T,Western Union
Supply Ability: 1000㎡
Marterial: Rogers FR4
Min Via: 0.1mm Laser Drill, 0.2mm Mechanic Drill
Final Foil: 1 Oz
Oem: Custom
Min Line Space: 3mil
High-Frequency Substrate Materials, Signal Integrity, SI, High-Frequency Signal Transmission
FAQ:
Q: What is the brand name of this product?
A: The brand name of this product is High Frequency PCB.
Q: Where is this product manufactured?
A: This product is manufactured in China.
Q: What is the delivery time for this product?
A: The delivery time for this product is 14-15 working days.
Q: What are the payment terms for purchasing this product?
A: The payment terms for purchasing this product are T/T.
Q: What is the supply ability of this product?
A: The supply ability of this product is 3000㎡.
