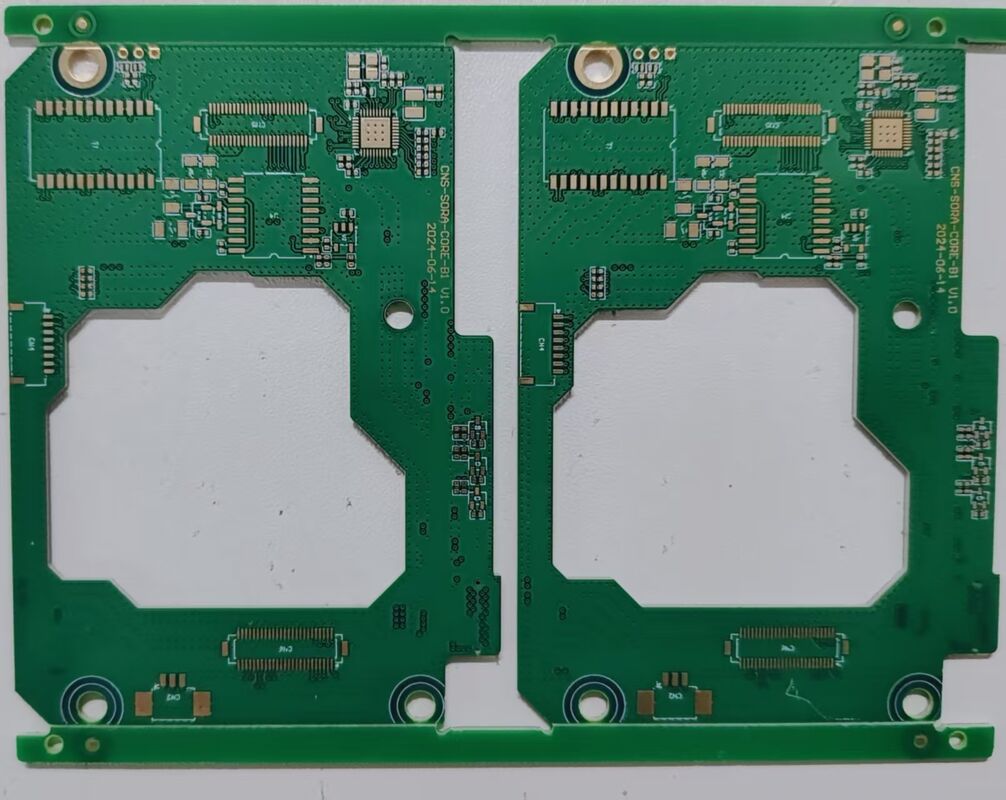

Custom Multilayer PCB Manufacturer FR4 Base ENIG PCB for Audio equipment
Product Details:
| Brand Name: | Xingqiang |
| Certification: | ROSH,ISO,UL,IATF |
| Model Number: | Varies By Goods Condition |
Payment & Shipping Terms:
| Minimum Order Quantity: | Sample,1 Pc(5 Square Meters) |
|---|---|
| Price: | NA |
| Packaging Details: | Packed As Per Customer |
| Delivery Time: | NA |
| Payment Terms: | ,T/T,Western Union |
| Supply Ability: | 100000㎡/Month |
|
Detail Information |
|||
| Type: | Customized PCB | Number Of Layers: | 1-30L |
|---|---|---|---|
| Samples: | Available | Impedance Tolerance: | +/-10% |
| Min.hole Size: | 0.1mm | Copper Overall: | 0.5-5oz |
| Outline Tolerance: | +/-0.1mm | PTH: | +/-0.075Mm |
| Quotation Files: | Gerber Files | PCB Dimension: | As Per Your Request |
| Silkprint: | White/Green/Black/Red/Yellow/Blue | Normal Thickness: | 1.6/1.2/1.0/0.8mm Or Customized |
| Highlight: | Custom multilayer PCB for audio equipment,FR4 base ENIG PCB manufacturer,Multilayer PCB board with warranty |
||
Product Description
High Quality FR4 Multilayer PCB for Tailored Design & Project Specifications:
Our FR4 Multilayer PCB product is available with OEM services, allowing customers to customize their boards according to specific design requirements and project specifications. Whether you need a tailored stack-up, unique dimensions, or specialized surface finishes, our OEM service ensures that your FR4 Multilayer PCB is manufactured exactly to your needs. This flexibility makes it easier for businesses to innovate and bring their products to market faster without compromising on quality.
Technical Parameters:
| Product Type | Customized PCB |
| Packing | Carton |
| OEM Service | Yes |
| Silkprint | White |
| Minimum Line Width | 3mil (0.075mm) |
| Standard Testing | IPC Class 2 |
| Number Of Layers | 2/4/6/8/10L or Tailored |
| Surface Finishing | HASL, Lead Free HASL, OSP, ENIG |
| Shipping Method | DHL, UPS, TNT Or As Per Your Request |
Custom Manufacturing Process of FR4 Multilayer PCB:
- Design review & DFM analysis based on Gerber files and specs
- Material preparation with FR4 laminates and RoHS-compliant components
- Layer fabrication, alignment, and high-pressure lamination
- Precision drilling, copper plating, and via formation
- Applied surface finish (ENIG, HASL, OSP, etc.)
- AOI, flying probe test, and full electrical inspection - Anti-static packaging and secure global shipping
Factory showcase
PCB Quality Testing
Certificates and Honors
