Custom Double Sided Sunken Gold Process BT PCB Printed Circuit Board For Electronics Device
Product Details:
| Place of Origin: | China |
| Brand Name: | xingqiang |
| Certification: | ISO 9001 / RoHS /UL / IATF 16949 (automotive) |
| Model Number: | Varies by goods condition |
Payment & Shipping Terms:
| Minimum Order Quantity: | Sample,1 pc(5 square meters) |
|---|---|
| Price: | Based on Gerber Files |
| Packaging Details: | Outer Cartons |
| Delivery Time: | NA |
| Payment Terms: | ,T/T,Western Union |
| Supply Ability: | 100000㎡/Month |
|
Detail Information |
|||
| Product: | BT Print Circuit Board | Min.hole Size: | 0.1mm |
|---|---|---|---|
| Material: | FR4 | Pcba Standard: | IPC Class II |
| Surface Finishing: | HASL/OSP/ENIG | Board Thinkness: | 1.2/1.6/1.0/0.8mm |
| Special Board Thick: | 2.0/0.6/0.4/0.2Mm | Minimum Line Space: | 3mil (0.075mm) |
| Quotation: | Gerber Files And BOM List | Solder Mask Color: | Green,White,Yellow,Black,Blue,Red |
| Highlight: | Sunken Gold Process BT PCB,BT PCB For Electronics Device,Double Sided BT Printed Circuit Board |
||
Product Description
Tailored PCB Designs That Fit Your Exact Application Needs?

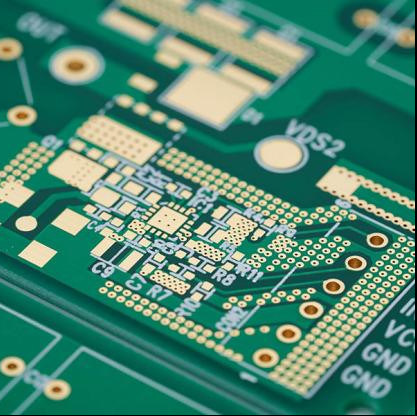

This is a high-precision, custom printed circuit board (PCB) ideal for advanced electronic applications. Featuring a green solder mask, dense component pads, and intricate copper traces, it is engineered for high performance. Xing Qiang specialize in manufacturing tailored PCBs—from double-sided to multi-layer designs—using premium materials like BT resin and FR-4. Our solutions meet strict industry standards for thermal stability, signal integrity, and reliability, supporting sectors such as semiconductor packaging, telecommunications, and industrial control. We deliver custom designs that align with clients' unique technical specifications and production requirements.
Custom Applications of This High‑Precision PCB:
• Industrial control equipment and automation systems
• Telecommunications and high‑speed signal transmission equipment
• High‑performance electronic modules and communication terminals
• Precision instruments and testing & measurement devices
What’s the Professional Production Process for Your Custom PCB?
1.Receive customer’s design files and confirm technical requirements including materials, layers and specifications.
2. Conduct file review, engineering optimization and DFM analysis to ensure manufacturability.
3. Start PCB fabrication: cutting, drilling, electroplating, imaging, etching and solder mask application.
4. Perform surface finishing, testing for electrical performance, impedance and reliability.
5. Conduct final inspection, packaging and delivery according to customer requirements.
Why Choose Custom PCBs Instead of Off-the-Shelf Finished PCBs
| Aspect | Custom PCB | Finished / Standard PCB |
|---|---|---|
| Design flexibility | Fully customized to your size, layer count, layout and functions | Fixed specifications, limited to standard models |
| Material selection | Supports high-performance materials (BT resin, FR‑4, high Tg) | Only common basic materials available |
| Performance & reliability | Optimized for signal integrity, thermal stability and durability | General performance, cannot meet high-end demands |
| Product compatibility | Perfectly matches your equipment structure and interface | May not fit your mechanical or electrical requirements |
| Application scope | Suitable for industrial control, communications, semiconductors, precision devices | Only for simple, low-demand general products |
