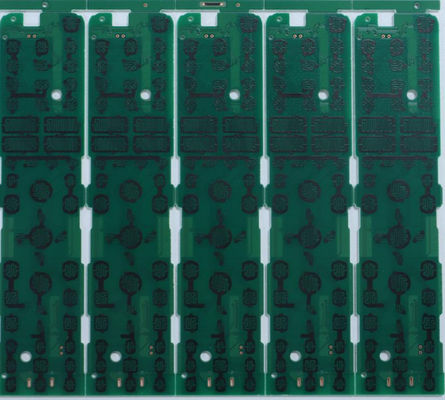

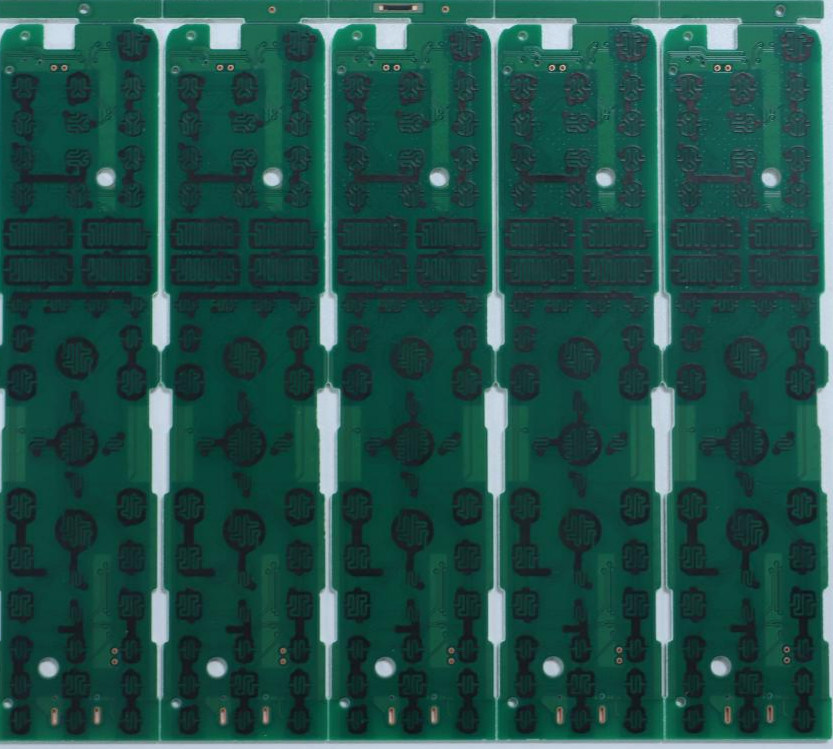

OSP Treatment Double Sided PCB Green Soldermask FR4 Material Versatile
Product Details:
| Place of Origin: | China |
| Brand Name: | xingqiang |
| Certification: | ROHS, CE |
| Model Number: | Varies by goods condition |
Payment & Shipping Terms:
| Minimum Order Quantity: | Sample,1 pc(5 square meters) |
|---|---|
| Price: | NA |
| Delivery Time: | 7-10 work days |
| Payment Terms: | ,T/T,Western Union |
| Supply Ability: | 3000 |
|
Detail Information |
|||
| Base Material: | FR4/ROGERS/PET/HDI | Silkscreen: | White |
|---|---|---|---|
| Board Thickness: | 1.2 Mm | Peelable: | 0.3-0.5mm |
| Pcb Base Material: | FR4 TG150 | Cu Weight: | 1OZ |
| Minconductiveannularring: | 0.2mm | Tg Value: | 140 |
| Min. Trace Width: | 0.1mm | Min. Panel Size: | 50mm X 50mm |
| Surface Finish: | OSP | Mask: | Yellow+green |
| Drill Hole: | 0.1-6.35mm | Minimum Line: | 0.075mm |
| Highlight: | Green Soldermask Double Sided PCB,OSP Treatment Multilayer Printed Circuit Board |
||
Product Description
OSP Green Soldermask HASL Material SMT Multilayer PCB Board refers to a multilayer printed circuit board (Multilayer PCB) designed for Surface Mount Technology (SMT) assembly, featuring a specific combination of surface treatment, solder mask, and base materials. Its core manufacturing process involves: first, laminating multiple layers of substrate (with pre-etched internal circuits) to form a multilayer structure; then, applying green solder mask ink on the outer layers to insulate and protect non-welding areas; subsequently, treating the exposed copper pads with OSP (Organic Solderability Preservative) to prevent oxidation; and finally, using HASL (Hot Air Solder Leveling) on key solder points (if hybrid treatment is adopted) to enhance solderability. This board integrates the advantages of OSP and HASL treatments, making it suitable for complex electronic systems requiring high reliability and efficient assembly.
Appearance Characteristics
Uniform green solder mask: The outer surface is covered with a consistent green solder mask, a standard color in the electronics industry, ensuring high visibility for visual inspection during SMT assembly and reducing errors in component placement.
Clear layer structure: The multilayer design (typically 4 layers or more) allows for compact routing, with the green mask providing a clear contrast against the exposed copper pads (protected by OSP) and HASL-treated solder points, facilitating circuit identification and maintenance.
Performance Characteristics
Dual solderability enhancement: OSP forms a thin organic film on copper pads to maintain long-term solderability and resist oxidation, while HASL (applied selectively or globally) creates a solderable tin-lead or lead-free alloy layer on critical areas, ensuring strong bonding during high-temperature SMT soldering.
High insulation and mechanical strength: The green solder mask offers excellent insulation (high volume resistivity) to prevent short circuits between adjacent traces, while the multilayer lamination (using high-performance substrates like FR-4) provides robust mechanical strength, resisting warpage under thermal stress during assembly and operation.
Signal integrity optimization: The multilayer structure allows for dedicated power and ground planes, reducing electromagnetic interference (EMI) and crosstalk. Combined with OSP’s minimal impact on impedance (due to its thin layer), the board ensures stable signal transmission in high-frequency applications (up to several GHz).
Application Adaptability
Complex electronic systems: Ideal for consumer electronics (smart TVs, routers), industrial control systems (PLCs, sensors), and automotive electronics (infotainment systems, ADAS modules), where multilayer routing, high assembly efficiency, and reliable soldering are critical.
High-density SMT assembly: Its compatibility with fine-pitch components and automated processes makes it suitable for compact devices requiring high integration, such as medical monitors and communication base stations.
