High Reliability Tailored Rigid-Flex PCB for Aerospace, Medical & Industrial Devices
Product Details:
| Place of Origin: | China |
| Brand Name: | xingqiang |
| Certification: | ISO 9001 / RoHS /UL / IATF 16949 (automotive) |
| Model Number: | Varies by goods condition |
Payment & Shipping Terms:
| Minimum Order Quantity: | Sample,1 pc(5 square meters) |
|---|---|
| Price: | Based on Gerber Files |
| Delivery Time: | NA |
| Payment Terms: | ,T/T,Western Union |
| Supply Ability: | 100000㎡/Month |
|
Detail Information |
|||
| Features: | Gerber/PCB File Needed | Product Name: | Rigid Flex PCB |
|---|---|---|---|
| Min Hole Size: | 0.1mm | Board Thickness: | 0.2-5.0mm |
| Pcb Size: | Customized | Max Board Size: | 528*600mm |
| Insulation Materials: | Organic Resin | Stiffener Options: | Polyimide,FR4 |
| Components: | SMD, BGA, DIP, Etc. | Solder Mask Color: | Green/Red/White/Yellow/Black/Blue |
| Highlight: | 4 Layer Structure Rigid Flex PCB,Soft And Hard Combination PCB Board,OSP Flexible Rigid Pcb |
||
Product Description
Panelized Rigid-Flex PCBs – Durable, Bendable, and Corrosion Resistant

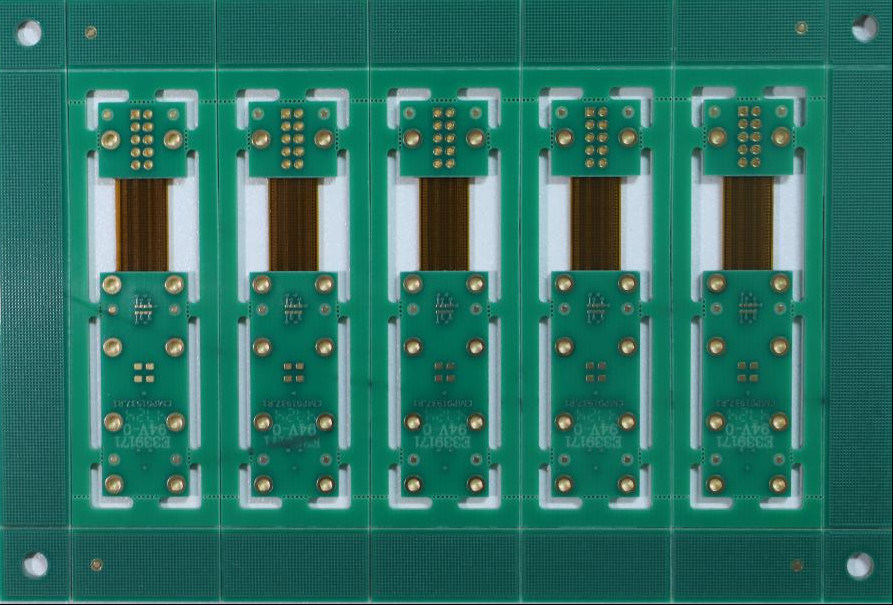

This is a panel of custom rigid-flex printed circuit boards (PCBs), integrating rigid FR-4 substrates (green) and flexible polyimide sections (brown). Designed for high-density, space-constrained electronics, they provide robust mechanical support via rigid areas and dynamic bendability via flex regions, ideal for wearable devices, medical equipment, and compact IoT products. The ENIG (gold) surface finish ensures superior solderability and corrosion resistance for reliable long-term performance.
| Advantage | Description | Benefit |
|---|---|---|
| Space Savings | Combines rigid and flexible substrates into one unit. | Reduces device size and weight significantly. |
| Increased Reliability | Fewer connectors and soldered joints. | Minimizes failure points and improves vibration resistance. |
| 3D Design Freedom | Flexible sections can bend and fold into complex shapes. | Enables innovative packaging and fits into tight enclosures. |
| Simplified Assembly | Integrates multiple boards into a single structure. | Reduces assembly time and labor costs. |
| Enhanced Performance | Optimized routing for high-speed signals. | Ensures better signal integrity and electrical performance. |
What files are needed for your custom PCB?
• Gerber Files (RS-274X): The standard design files required for PCB fabrication.
• BOM (Bill of Materials): Required if you need PCBA (assembly) services.
• Pick & Place Files: Necessary for accurate component placement during SMT assembly.
• Impedance & Stack-up Details: If your design requires specific signal integrity performance.
• Assembly Drawing: For mechanical dimensions and any special notes.
