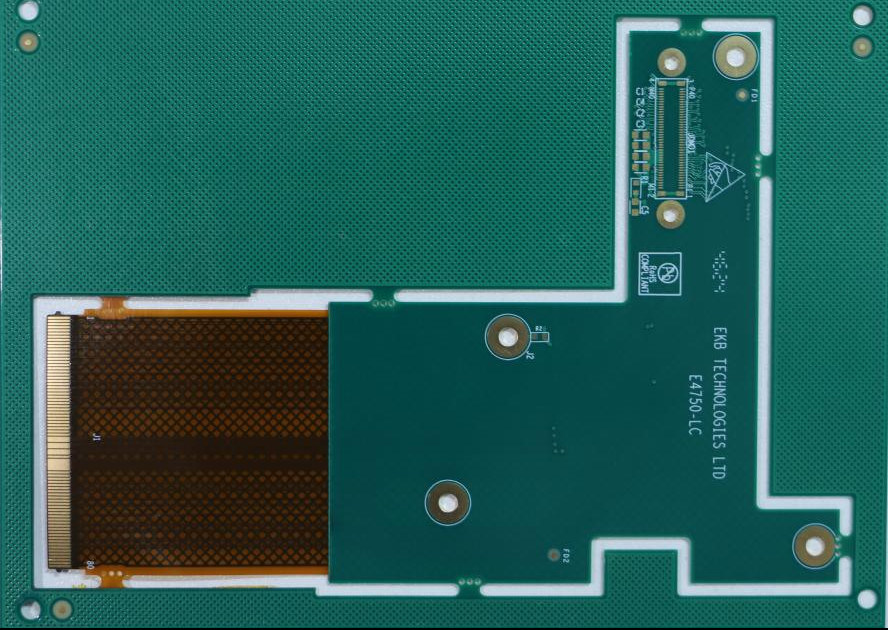

High Durability Custom Rigid Flex Circuit Board Oxidation Resistant & Bendable
Place of Origin:
China
Brand Name:
xingqiang
Certification:
ISO 9001 / RoHS /UL / IATF 16949 (automotive)
Model Number:
As Per Customer's Model
Minimum Order Quantity:
Sample,1 pc(5 square meters)
Price:
Based on Gerber Files
Delivery Time:
NA
Payment Terms:
,T/T,Western Union
Supply Ability:
100000㎡/Month
Product Details
Highlight:
HASL Lead Free Rigid Flex PCB
,4 Layer Blank Printed Circuit Board
,Printed Circuit Board For Electronic Systems
Product Name:
Rigid Flex Circuit Board
Pcba Standard:
IPC-A-610E
Max Board Size:
528*600mm
Minimum Line Space:
3mil (0.075mm)
Testing Medthod:
100% E-Test
Material:
High Tg FR-4+PI
Surface Finishing:
HASL/OSP/ENIG
Price:
Based On Gerber Files
Normal Layer:
2/4/6/8/10L Or Customized
PCB Thickness:
1.6/1.2/1.0/0.8Mm Or Customizable
Product Description
High-Reliability Rigid-Flex PCBs for Aerospace, Medical & Consumer Electronics
A Rigid-Flex PCB is a hybrid circuit board that combines the stability of FR-4 rigid substrates with the flexibility of Polyimide (PI) films. It integrates rigid areas for component mounting and flexible sections for bending, folding, or dynamic movement. This design eliminates connectors, reduces size, and improves reliability by withstanding thousands of flex cycles. Ideal for compact, high-reliability applications in aerospace, medical, and consumer electronics.
In which scenarios can this board be applied?/Core Adaptation Advantages
| Application Field | Typical Usage Scenarios | Core Adaptation Advantages |
|---|---|---|
| Smart Wearables | Screen-mainboard connection for smart watches/bracelets, internal wiring of earbud charging cases | Thin and light (total thickness down to 0.2mm), bend-resistant, space-saving |
| Industrial Control | Robot joint sensors, internal connection of PLC controllers | Vibration-resistant (vibration frequency: 10-2000Hz), high and low temperature resistant |
| Medical Devices | Portable ultrasound probes, blood glucose meter circuit boards | Biocompatibility (medical-grade PI), high-precision wiring |
| Automotive Electronics | In-vehicle cameras, millimeter-wave radar circuit boards | Humidity and heat resistant (85℃/85%RH for 1000h), electromagnetic interference resistant |
Frequently Asked & Questions about Rigid-Flex PCBs:
1.What’s the minimum order quantity (MOQ)?
We accept MOQ 1 piece(5 square meters) for prototypes and small batches. Mass production MOQ depends on complexity.
2.What file formats do you need for quotation?
Please provide Gerber files, IPC-2581, or ODB++, along with BOM and assembly drawing if available.
3.What’s the lead time for mass production?
Typically 15–25 days, depending on layer count, testing requirements, and order volume.
4.Do you offer assembly (PCBA)?
Yes, we provide full turnkey PCBA services, including component sourcing, SMT and testing.
5.Are your products compliant with the quality production standards, and conflict minerals regulations?
Yes, all our materials are RoHS, CE,ISO compliant, and we follow conflict-free sourcing policies.
