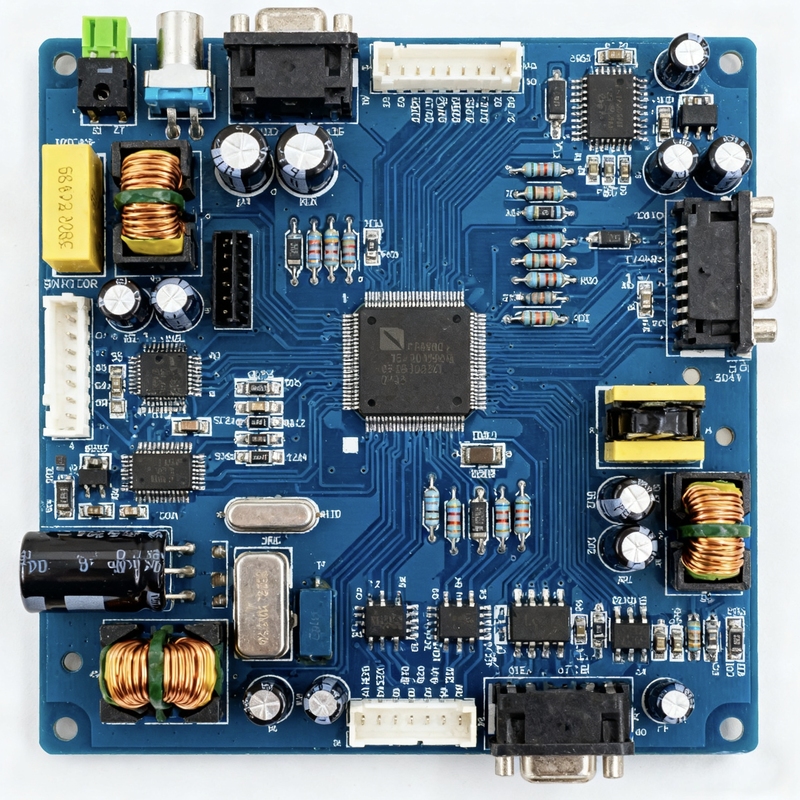

Industrial Drone Power Custom PCBA FR-4 High Efficiency for Drone Propulsion System OEM
Подробная информация о продукте:
| Фирменное наименование: | Xingqiang |
| Сертификация: | ROHS, CE |
| Model Number: | Varies By Goods Condition |
Оплата и доставка Условия:
| Minimum Order Quantity: | Sample,1 Pc(5 Square Meters) |
|---|---|
| Цена: | NA |
| Packaging Details: | As Customer Requirements |
| Payment Terms: | ,T/T,Western Union |
| Поставка способности: | 80000㎡/Месяц |
|
Подробная информация |
|||
| Материал печатной платы: | ФР4 | Толщина печатной платы: | 00,2-5,0 мм |
|---|---|---|---|
| Пламенная задержка: | Да | Элемент: | Обслуживание печатных плат OEM/ODM |
| Отделка поверхности: | ХАСЛ/ОСП/ЭНИГ | Слой: | 2-30 л |
| размер min.hole: | 0,1 мм | Медь в целом: | 0.5-5 унций |
| Дистанционирование Min.Line: | 3 мили | Запрос котировок: | Файлы Gerber, список спецификаций |
| Выделить: | Industrial drone power PCBA,Custom FR-4 PCB assembly,Drone propulsion system PCB |
||
Характер продукции
Product Description:
PCBA (Printed Circuit Board Assembly) refers to the fully functional electronic assembly formed by attaching active and passive components (resistors, capacitors, ICs, etc.) to a bare PCB through soldering processes. Serving as the "central nervous system" of electronic devices, it connects discrete components to enable signal transfer, power management, and core functionality. Unlike the PCB—with only copper layers and solder masks for circuit paths—PCBA is the ready-to-use module integrated into products ranging from daily gadgets to industrial, automotive, and medical equipment. Its role is to translate circuit design into tangible performance, ensuring reliable operation of modern electronic systems across industries.
Features:
- Product Name: Custom PCB Assembly
- Category: Custom PCB Assembly
- Flame Retardancy: Yes, ensuring safety and reliability
- PCB Material: High-quality FR4 for durability
- Components: Qualified and tested for optimal performance
- Supports Fast PCBA services for quick turnaround
- Quotation Request: Please provide Gerber Files and BOM List
- Ideal for Electronic PCB Board applications
- Expertise in Electronic PCB Board manufacturing and assembly
Key Technical Challenges in PCBA Manufacturing:
- Component Miniaturization: Assembling ultra-small components (e.g., 01005 chips) demands high-precision placement, as even micron-level deviations cause soldering defects or electrical failures.
- Thermal Management: Reflow soldering requires precise temperature control—overheating damages sensitive ICs, while insufficient heat leads to poor solder joints.
- Solder Joint Quality: Void formation, bridging, or cold solder joints often result from improper solder paste application or incompatible component/PCB materials.
- High-Density Integration: Dense circuit layouts (e.g., BGA, QFP packages) increase the risk of signal interference and make inspection/repair more difficult.
- Process Consistency: Maintaining uniform quality across large production batches is challenging, as environmental factors (humidity, dust) or equipment wear affect outcomes.
- Reliability Testing: Detecting hidden defects (e.g., internal solder cracks) requires advanced tools like X-ray or AOI, adding complexity and cost to quality control.
