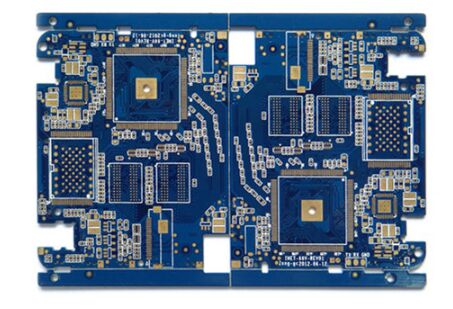

RO4003C Glass Epoxy 4L Layers Heavy Copper PCB Board with Enhanced Thermal Management
Product Details:
| Brand Name: | Xingqiang |
| Certification: | ROHS,ISO,UL,IATF |
| Model Number: | As Per Customer's Model |
Payment & Shipping Terms:
| Minimum Order Quantity: | Sample,1 Pc(5 Square Meters) |
|---|---|
| Price: | Based On Gerber Files |
| Packaging Details: | Carton Or As Your Request |
| Delivery Time: | NA |
| Payment Terms: | ,T/T,Western Union |
| Supply Ability: | 100000㎡/Month |
|
Detail Information |
|||
| Board Size: | 100 * 20 Mm | Key Word: | Heavy Copper PCB |
|---|---|---|---|
| Special Requirement: | Impedance Control Test | Samples: | Available |
| Components Purchasing: | OK | Surface Finish: | HASL, ENIG, OSP, Immersion Silver |
| Board Thickness: | 0.4mm To 3.2mm | Glass Epoxy: | RO4003C |
Product Description
This high-quality multilayer PCB board is engineered to meet the rigorous demands of modern electronic applications. Manufactured in compliance with IPC-A-610 E Class II-III standards, it ensures exceptional reliability and performance for both commercial and industrial applications.
Featuring heavy copper construction, this board provides superior current capacity and enhanced thermal management, making it ideal for power electronics, automotive systems, and high-performance circuits. The increased copper thickness ensures improved conductivity and heat dissipation, extending board lifespan and reducing failure risks.
Constructed from premium FR4 material, this multilayer PCB offers excellent mechanical strength, electrical insulation, and flame resistance. The multilayer configuration enables complex circuit layouts by stacking multiple copper and insulating layers, maximizing circuit density without compromising signal integrity.
| Parameter | Specification |
|---|---|
| Samples | Available |
| RoHS Compliant | Yes |
| PCB Standard | IPC-A-610 E Class II-III |
| Key Feature | Heavy Copper PCB |
| Production Requirements | Gerber File or Design Data Needed |
| Components Purchasing | Available |
| Special Requirements | Impedance Control Test |
| Board Thickness | 0.4mm to 3.2mm |
| Layers | 4L |
| Size | 120mm × 90mm |
This multilayer PCB board serves diverse applications across multiple industries:
- Consumer Electronics: Smartphones, tablets, and wearable devices requiring space-saving designs and high functionality
- Automotive Systems: Advanced driver-assistance systems (ADAS), infotainment systems, and engine control units
- Industrial Automation: Precision control systems and industrial equipment
- Medical Devices: Critical medical equipment requiring reliability and precision
The board features multiple surface finish options including HASL, ENIG, OSP, and Immersion Silver for excellent solderability and corrosion resistance. Prototyping and small batch production are supported with minimum orders starting from 1 piece or 5 square meters.
