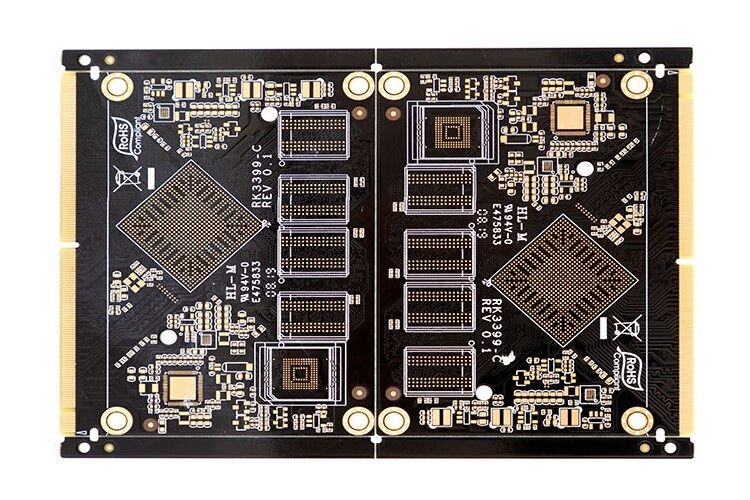

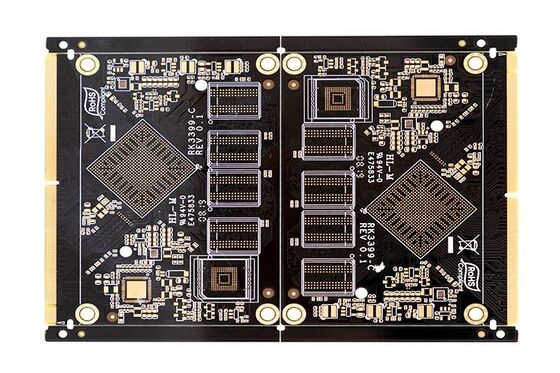

Heavy Copper PCB Multilayer PCB Board with RO4003C Glass Epoxy and 6 Layer Design for RoHS Compliant Applications
Brand Name:
Xingqiang
Certification:
ROHS,ISO,UL,IATF
Model Number:
As Per Customer's Model
Minimum Order Quantity:
Sample,1 Pc(5 Square Meters)
Price:
Based On Gerber Files
Standard Packaging:
Carton Or As Your Request
Delivery Time:
NA
Payment Terms:
,T/T,Western Union
Supply Ability:
100000㎡/Month
Product Details
Samples:
Available
Board Size:
100 * 20 Mm
Rohs Compliant:
Yes
Glass Epoxy:
RO4003C
Components Purchasing:
OK
Solder Mast:
Customized
Key Word:
Heavy Copper PCB
Pcb Standard:
IPC-A-610 E Class II-III
Product Description
Heavy Copper PCB Multilayer PCB Board Offering Impedance Control Test 120mmX90mm
Product Overview
This advanced Multilayer PCB Board is engineered to meet the complex requirements of modern electronic applications. Designed as a reliable Electronic PCB Board, it delivers exceptional performance, durability, and precision for telecommunications, automotive, aerospace, and consumer electronics industries.
The 6-layer construction enables increased circuit density, enhanced signal integrity, and improved thermal management. Built with RO4003C glass epoxy substrate for excellent electrical properties and mechanical strength, this board ensures reliable performance under various operating conditions.
RoHS compliant and featuring customizable solder masks, this Heavy Copper PCB offers superior current carrying capacity and thermal management for demanding applications.
Technical Specifications
| Parameter | Specification |
|---|---|
| Board Size | 100 × 20 mm |
| Samples | Available |
| Layers | 4L |
| Soldermask | Green |
| Key Feature | Heavy Copper PCB |
| RoHS Compliant | Yes |
| Glass Epoxy | RO4003C |
| Solder Mask | Customized |
| PCB Standard | IPC-A-610 E Class II-III |
| Board Thickness | 0.4mm to 3.2mm |
Key Features
- 6-layer multilayer PCB design for complex circuit requirements
- RO4003C glass epoxy substrate for superior electrical performance
- Heavy copper construction for high current capacity and thermal management
- RoHS compliant manufacturing
- Customizable solder mask colors and finishes
- Components purchasing services available
- Impedance control testing capability
Applications
This versatile multilayer PCB board serves diverse applications across multiple industries:
- Telecommunications equipment
- Automotive electronics systems
- Aerospace and aviation electronics
- Medical equipment and devices
- Industrial automation and control systems
- Consumer electronics and computing devices
- Power electronics and high-frequency applications
Frequently Asked Questions
What brand and model number are the Multilayer PCB Boards?
The Multilayer PCB Boards are branded as Xingqiang, and the model number is customized as per the customer's model requirements.
Where are the Multilayer PCB Boards manufactured?
All Multilayer PCB Boards are manufactured in China.
What certifications do the Multilayer PCB Boards have?
The boards are certified with ROHS, ISO, UL, and IATF standards to ensure quality and safety.
What is the minimum order quantity for these PCB boards?
The minimum order quantity starts from a sample or 1 piece, which is approximately 5 square meters.
How is the pricing determined for the Multilayer PCB Boards?
Pricing is based on the Gerber files provided by the customer, allowing for accurate cost calculation.
What are the packaging options available?
The boards can be packaged in cartons or according to your specific requests.
What payment methods are accepted?
We accept payments via T/T (Telegraphic Transfer) and Western Union.
What is the monthly supply capacity?
Our supply ability is up to 100,000 square meters per month, ensuring we can fulfill large orders efficiently.
Overall Rating
5 star
100%
4 star
0
3 star
0
2 star
0
1 star
0
All Reviews
-
CThe board demonstrated stable performance during subsequent cleaning processes; the green solder mask layer exhibited no discoloration or peeling, demonstrating excellent chemical stability.
-
LBoasting excellent anti-interference capabilities, it maintains stable operation even under complex working conditions, ensuring safe and reliable usage.
-
AThe pricing is transparent and competitive, with consistent quotes from prototyping to mass production. The cost of custom multi-layer PCBs is controllable, and there are no hidden or unexpected price increases.
