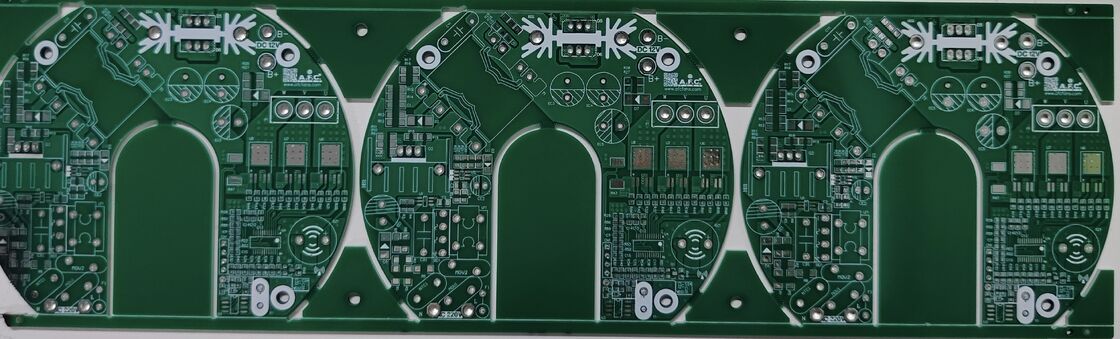

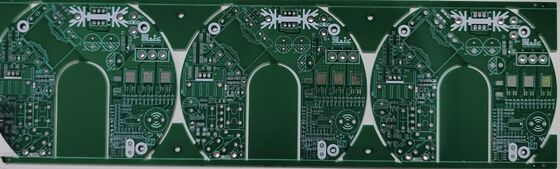

Custom 4-Layer PCB OSP Surface Finish Electronic PCB Board Supported by OEM Service
Brand Name:
Xingqiang
Certification:
ROHS,ISO,UL,IATF
Model Number:
As Per Customer's Model
Minimum Order Quantity:
Sample,1 Pc(5 Square Meters)
Price:
Based On Gerber Files
Standard Packaging:
Carton Or As Your Request
Delivery Time:
NA
Payment Terms:
,T/T,Western Union
Supply Ability:
100000㎡/Month
Product Details
Highlight:
Custom 4-layer PCB OSP finish
,OEM electronic PCB board
,Multilayer PCB with OSP surface
PCB Name:
Custom Multilayer PCB
IPC Class 2:
Yes
Finish:
OSP
Min Line Spacing:
3Mil
Glass Epoxy:
FR-4
Minimum Hole Size:
0.1mm
Smt:
Support
Max Layer Count:
1-30 Layers
Hard Gold:
Golden Finger
Surface:
ENIG/HASL/OSP
Board Thickness:
0.2mm To 5.0mm
Price:
Gerber Files(pcb),BOM List(pcba)
Product Description
Product Description:
Our custom 4-layer PCB delivers exceptional signal integrity & EMI suppression via dedicated power/ground planes. ENIG surface finish ensures superior solderability, oxidation resistance & stable contact for reliable high-frequency transmission. Precision-engineered irregular/custom shape (U-cutout, round frame) optimizes compact device integration. Built with high-quality FR4, it offers excellent thermal stability & mechanical strength. RoHS compliant, IPC standard, with strict AOI & electrical testing. Ideal for efficient, durable & miniaturized wireless power solutions.PCB Core Advantages :
| Item | Details |
|---|---|
| Structure | Custom irregular shape for compact assembly & space saving |
| Layers | 4-layer design with better shielding, stability and heat dissipation |
| Surface Finish | HASL finish ensures excellent solderability, oxidation resistance and long service life |
| Performance | Stable signal transmission, strong anti-interference, suitable for wireless charging & power applications |
| High Integration | Dense circuit layout supports wireless charging, BMS and power management in one board. |
| Quality | RoHS compliant, strict testing, high reliability for mass production |
Files Required for Custom PCB:
• Gerber files (standard PCB manufacturing data)
• PCB dimension drawing & outline
• Layer count & material specification
• Surface finishing requirement
• BOM list (if PCBA assembly needed)
• Quantity & delivery request
