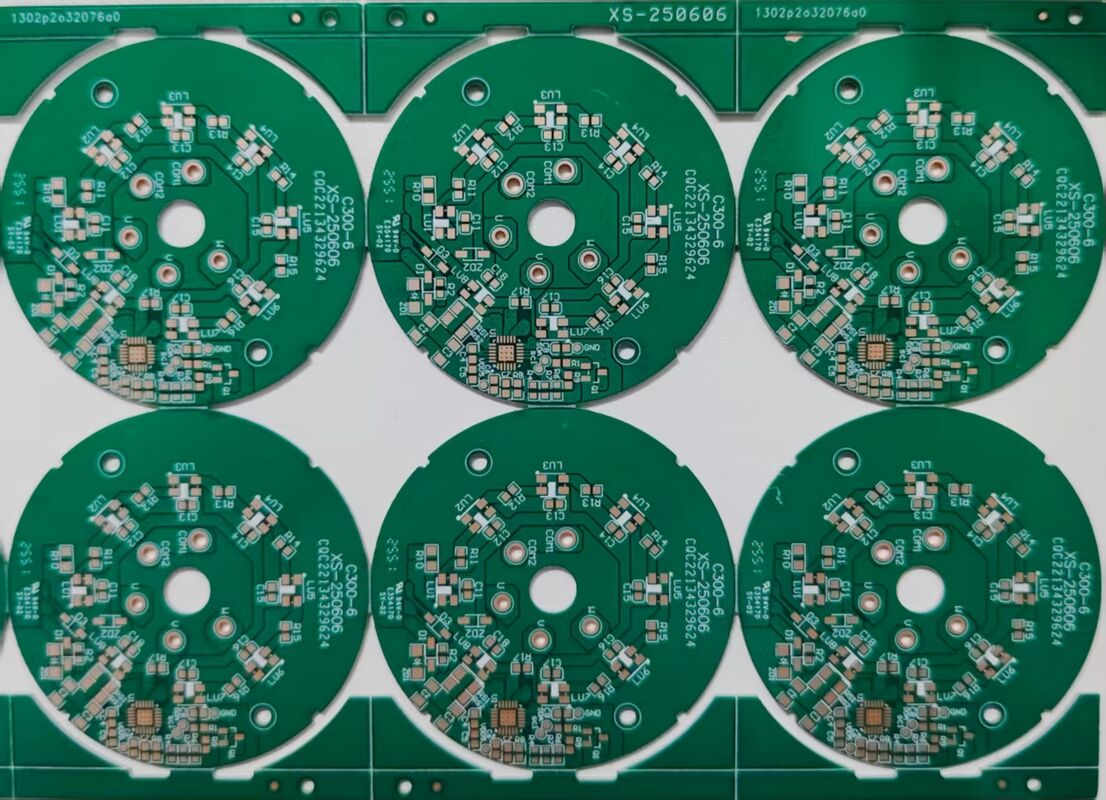

Custom Double-Sided PCB Gold Finish Enhance Signal Integrity and Corrosion Resistance
Brand Name:
Xingqiang
Certification:
ISO 9001 / ROHS /UL / IATF 16949 (automotive)
Model Number:
As Per Customer's Model
Minimum Order Quantity:
Sample,1 Pc(5 Square Meters)
Price:
Based On Gerber
Standard Packaging:
As Per Customer's Request
Delivery Time:
NA
Payment Terms:
,T/T,Western Union
Supply Ability:
100000㎡/Month
Product Details
Highlight:
double sided PCB gold finish
,custom PCB corrosion resistance
,PCB signal integrity enhancement
PCB Type:
Custom Double-Sided PCB
Legend:
White
Minimumholesize:
0.1 Mm
Copper Overall:
0.5-5oz
Quotation:
Gerber Files
Max Layer Count:
1-30 Layers
Panel Thickness:
0.2-5.0mm
Size:
Customized
Certification:
RoHS / CE / UL
Finish:
HAS/ Lead Free/Gold/OSP/...
Quotation Files:
Gerber Files Or Bom List(PCBA)
Solder Ink Color:
Green,Red,Blue,White,Yellow,Black
Product Description
Product Description:
The Double Sided Printed Circuit Board (PCB) is a highly versatile and reliable solution designed to meet the diverse needs of modern electronic applications. Also commonly referred to as a Dual Sided PCB, this type of printed circuit board features conductive copper layers on both the top and bottom sides, allowing for increased circuit density and enhanced functionality in a compact footprint. The Dual Sided PCB design is ideal for applications where space-saving and efficient electrical connectivity are paramount, making it a popular choice across various industries including consumer electronics, automotive, telecommunications, and industrial equipment.
Custom PCB vs. Finished PCB:
| Item | Custom PCB | Finished Module | Advantages of Custom PCB |
|---|---|---|---|
| Size & Shape | Custom size & shape | Fixed dimensions | Perfect fit, saves space |
| Function | Tailored to your needs | Fixed functions | Fully matches your product |
| Performance | Optimized design | Generic performance | Better stability & anti-interference |
| Cost | Lower mass cost | Higher unit cost | More cost-effective in bulk |
| Materials & Process | Flexible options | Limited choices | Higher quality & longer life |
| Integration | High integration | Needs extra wiring | Simplifies assembly |
| Differentiation | Unique exclusive design | Common design | Improves product competitiveness |
Custom Double Sided PCB Production Process :
- Receive customer design files (Gerber/PCB files) and confirm specifications: layers, size, surface finish, materials.
- Engineering review: DFM check, impedance optimization, EMC adjustment for motor drive circuits.
- Fabrication: laminate cutting, drilling, plating, etching, solder mask, silkscreen, ENIG surface treatment.
- SMT assembly: solder paste printing, component placement, reflow soldering, AOI inspection.
- Final testing: function test, continuity test, aging test; packaging and shipment.
Factory showcase
PCB Quality Testing
Certificates and Honors
Overall Rating
5 star
100%
4 star
0
3 star
0
2 star
0
1 star
0
All Reviews
-
AThe board feels solid and doesn't warp after going through the reflow oven. High-grade material used.
-
NThe PCB utilizes a high-quality TG150 (specify actual grade) substrate. Following a 48-hour high- and low-temperature cycling test, the solder mask remained free of cracks and the board exhibited no deformation, demonstrating excellent thermal stability.
