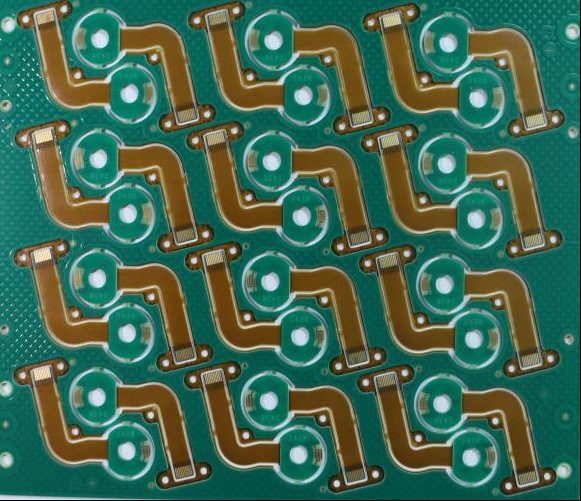

Customizable Rigid-Flex PCB with High Density & Anti-Interference for Industrial Devices
Product Details:
| Brand Name: | Xingqiang |
| Certification: | ISO 9001 / RoHS /UL / IATF 16949 (automotive) |
| Model Number: | As Per Customer's Model |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Pc,(5 Square Meters) |
|---|---|
| Price: | Based on Gerber Files |
| Packaging Details: | Carton Or As Your Request |
| Delivery Time: | NA |
| Payment Terms: | T/T,Western Union |
| Supply Ability: | 100000㎡/Month |
|
Detail Information |
|||
| Product Name: | Industrial Control Custom PCB | Layers: | 1-30L |
|---|---|---|---|
| Copper Overall: | 0.5-5oz | Max.board Size: | 528*600mm |
| Board Thickness: | 0.2mm-5.0mm | Information: | Gerber Files/BOM |
| SMT Technology: | SPI、AOI，BGA、 X-Ray | Material: | High Tg PI + High Tg FR-4 |
| Testing Method: | Flying Probe,AOI,Electrical Testing | Solder Mask: | Green, Red, Blue, Black, White,Yellow |
| Highlight: | Customizable Rigid-Flex PCB for industrial,High Density Rigid-Flex PCB,Anti-Interference Industrial Control PCB |
||
Product Description
What Is an Industrial Control Board PCB?:
An Industrial Control Board PCB (Printed Circuit Board) is the specialized core circuit board within industrial automation equipment. It's designed for harsh environments and critical tasks, integrating components like microcontrollers, memory, power regulators, and various input/output (I/O) ports. In essence, it's the ruggedized electronic "brain" that monitors, controls, and automates machinery and processes in factories, power plants, and other industrial facilities. Common examples include PLC CPU modules, motor drive controllers, and specialized machine automation controllers.Custom PCB vs. Off-the-Shelf PCB:
| Comparison | Custom PCB | Off-the-Shelf PCB |
|---|---|---|
| Design Flexibility | Fully customizable size, layers, layout and interfaces | Fixed specifications, limited structure & functions |
| Performance Matching | Optimized for high density, anti-interference, high-TG and heat resistance | Generic design, cannot meet special industrial requirements |
| Space & Integration | Supports 3D wiring, rigid-flex structure, compact assembly | Standard size, poor space utilization |
| Reliability & Stability | Tailored for harsh environments; high vibration & moisture resistance | General reliability, not optimized for industrial scenarios |
| Cost Efficiency | Lower long-term cost for mass production & stable performance | Higher overall cost due to redundant functions or poor fit |
| Application Adaptability | Ideal for industrial control, automotive, medical & IoT equipment | Only suitable for general low-demand electronic products |
FAQ:
1.Q:What kind of circuit board is this product?
A:An Industrial Control Circuit Board is a rugged Printed Circuit Board (PCB) designed to in harsh industrial environments.
2.Q:How many layers can your circuit boards provide?
A:We typically provide 1-30 layer boards, and in special cases, we can stack more layers.
3. Q:Do your circuit boards support customization?
A:Yes, we support customized designs. You can send us your Gerber files and BOM list, and we will provide you with an accurate quote based on the information and market conditions.
4. Q:What do Gerber files typically contain?
A:Normally Gerber files Include:PCB Types,Product thickness, Ink color, Surface treatment process and If SMT processing is required, component BOM and tag drawing are also required.
5. Q:What is your minimum order quantity for PCB boards?
A:Our minimum order quantity is 1 piece(5 square meters),the larger the quantity, the bigger the discount.
6. Q:Do you have relevant certification certificates to support this?
A:We hold numerous important certifications, including ISO, UL, CE, and RoHS. All products undergo rigorous quality testing.
7. Q:What payment method do you usually use?
A:For small orders, samples, or urgent payments, we accept Western Union. For large orders, we recommend T/T, which ensures the safety of both parties.
