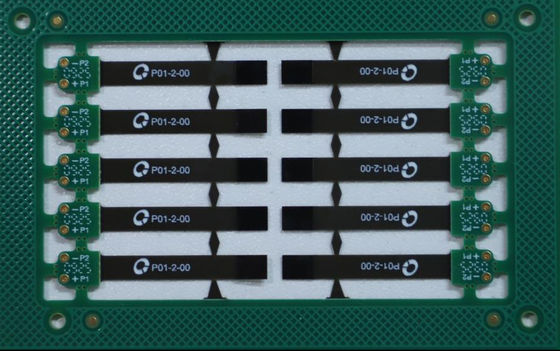

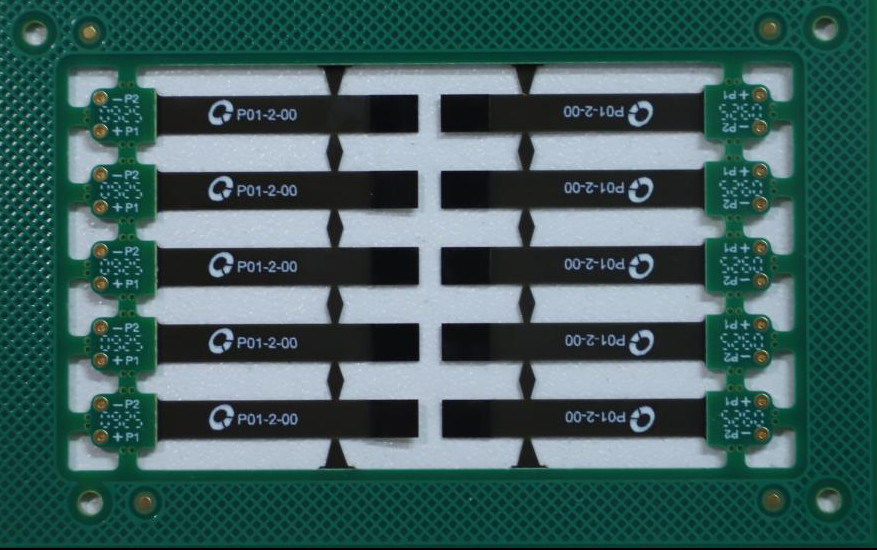

Factory Direct Custom FPC Flexible PCB Space-Saving&High Conductivity for Electronics
Product Details:
| Place of Origin: | China |
| Brand Name: | xingqiang |
| Certification: | ISO 9001 / RoHS /UL / IATF 16949 (automotive) |
| Model Number: | As Per Customer's Module |
Payment & Shipping Terms:
| Minimum Order Quantity: | Sample,1 pc(5 square meters) |
|---|---|
| Price: | Based on Gerber Files |
| Packaging Details: | Carton Or As Per Customer's Request |
| Delivery Time: | NA |
| Payment Terms: | ,T/T,Western Union |
| Supply Ability: | 100000㎡/Month |
|
Detail Information |
|||
| Product: | Customizable Flexible PCB | Min.Line Width: | 3mil |
|---|---|---|---|
| Minimum Line Space: | 3mil | Min. Hole Size: | 0.1mm |
| DK: | 3.2 ~ 4.8 | Board Thinkness: | 0.2-5.0mm |
| Material: | FR4/Rogers | Max.Board Size: | 528*600mm |
| Surface Finishing: | HASL/OSP/ENIG | Quotation Request: | Gerber Of BOM List |
| Ink Oil Color: | Green/Red/Blue/White/Yellow/Black | Characteristics: | Lightweight,Bendable,Long-Term Durability |
| Highlight: | custom FPC flexible PCB,high conductivity flexible PCB,space-saving flexible PCB board |
||
Product Description
Gerber-Based Flexible PCB • High Flexibility & Stable Performance
Xingqiang specializes in custom flexible printed circuit (FPC) solutions based on customers’ Gerber files.Made of high-quality PI material, our FPC features excellent flexibility, anti-vibration performance, and stable signal transmission. We support OEM/ODM customization, prototype development, and mass production to meet precise wiring demands for strain gauges, industrial sensors, automation equipment, and robotic systems.
High Precision Custom FPC with Excellent Flexibility & Stability:
- Built with premium PI material for exceptional flexibility and bending resistance
- Double-sided circuit design delivers stable signal transmission and strong anti-interference
- High precision structure ensures reliable performance in industrial environments
- Ultra-thin, lightweight and space-saving for compact sensor and control devices
- Excellent anti-vibration and anti-fatigue properties for long-term durability
- High-temperature resistant and reliable connection for industrial applications
Why Choose Us?
✔ 30 Years Expertise in PCB Manufacturing
✔ ISO 9001, ROHS, UL and ISO /TS16949 Certified
✔ Support customized services(PCB,PCBA)
✔ Professional Engineering Support (DFM, impedance simulation)
✔ Global Shipping (DHL, FedEx, UPS) – Delivered to USA, Germany, UK, Japan, Australia, etc.
Core Requirements for Industrial Control PCB Material Selection and Design
1.We first receive and carefully review customers’ Gerber files, thoroughly check the circuit design, dimensions, layer structure, and performance requirements, and communicate with customers in a timely manner to confirm details and resolve potential design issues to ensure accuracy.
2.High-quality polyimide (PI) materials are selected, which are strictly inspected to ensure they meet industrial-grade standards, providing excellent flexibility, high-temperature resistance, anti-vibration performance, and long-term durability for the FPC.
3.Key production steps include circuit imaging, precise etching to form clear circuit patterns, electroplating to enhance conductivity, via hole processing for interlayer connection, and precision molding to meet the required size and shape.
4.Strict electrical performance tests are conducted, including continuity testing, resistance detection, and signal transmission stability verification, to ensure the circuit works normally and meets the application needs of industrial equipment.
5.Each FPC undergoes strict flexibility and reliability tests, simulating industrial working environments to verify its anti-fatigue and anti-interference capabilities, ensuring it can operate stably in harsh industrial scenarios.
6.Finished products are thoroughly cleaned, inspected again for quality, cut to the specified size, and safely packaged to prevent damage during transportation, before being delivered to customers on time.
Factory showcase
PCB Quality Testing
Certificates and Honors
