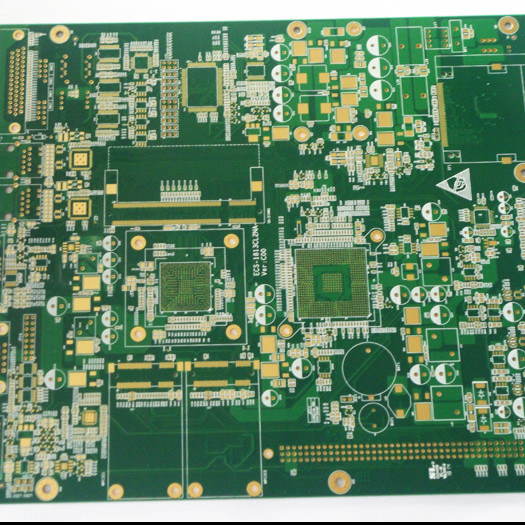

HDI Industrial Control PCB with Environmental Adaptation and Custom Design
Product Details:
| Place of Origin: | China |
| Brand Name: | xingqiang |
| Certification: | ISO 9001 / RoHS /UL / IATF 16949 (automotive) |
| Model Number: | Varies by goods condition |
Payment & Shipping Terms:
| Minimum Order Quantity: | Sample,1 pc(5 square meters) |
|---|---|
| Price: | Based on Gerber Files |
| Delivery Time: | NA |
| Payment Terms: | ,T/T,Western Union |
| Supply Ability: | 100000㎡/Month |
|
Detail Information |
|||
| Features: | Reliability,Longevity,Environmental Durability | Product: | Industrial Control PCB |
|---|---|---|---|
| Min. Hole Size: | 0.1mm | Pcba Support: | Yes |
| Max.Board Size: | 528*600mm | Minimum Line Space: | 3mil (0.075mm) |
| Material: | FR4/Rogers | Surface Finishing: | HASL/OSP/ENIG |
| Quotation Information: | Gerber Or BOM List | Board Thinkness: | 1.6/1.2/1.0/0.8mm Or Customized |
| Highlight: | 1.2mm Thinkness Industrial Control PCB,Custom Design Industrial Control PCB,1.2mm Industrial Printed Circuit Board |
||
Product Description
Overview of Industrial Control PCBs
Industrial control PCBs (printed circuit boards) are specialized circuit boards applied in industrial control systems. As a critical component of industrial automation equipment, machinery, and controllers, they facilitate functions such as electrical signal transmission, control instruction processing, and power supply transmission. The design of industrial control PCBs must adhere to rigorous standards, demanding high reliability, durability, and the capability to adapt to complex environments. Consequently, they have specific requirements in material selection, design architecture, and manufacturing processes, among other aspects.
Main Advantages of Industrial Control PCB:
- High reliability and stability
- Adapt to harsh environments
- Improve the system's integration degree
- Good thermal management capability
- High temperature resistance and chemical resistance
- Anti-electromagnetic interference (EMI)
Industrial Control PCB Applications
1.Automation:PLCs, DCS, Industrial Robots, Motion Control
2.Transportation:ECUs, ADAS, BMS (EVs), Rail Control
3.Energy & Power:Inverters, UPS, Grid Monitoring, Renewable Energy
4.Medical:MRI, X-Ray, Patient Monitors, Surgical Robotics
5.Infrastructure:Industrial Ethernet Switches, IIoT Devices, HMI
Customized Industrial PCB Production
I. Design Preparation
• Define Specs: Determine key requirements (layers, materials, environment).
• Layout & Files: Complete the circuit design and generate manufacturing files (Gerbers, BOM).
• DFM Review: Check the design for easy and cost-effective manufacturing.
• II. Bare Board Fabrication
• Layer Formation: Image, etch, and laminate copper layers to create the core board structure.
• Drill & Plate: Drill holes and plate them with copper to connect layers (vias).
• Finish: Apply Solder Mask (protection) and Surface Finish (for soldering).
• E-Test: Test the bare board for any shorts or opens.
• III. Assembly and Validation (PCBA)
• SMT: Print solder paste and use automated machines to place Surface Mount Components.
• Soldering: Use reflow ovens (SMT) or wave soldering (THT) to secure components.
• Protection: Apply Conformal Coating to protect the board from harsh elements (moisture, dust).
• FCT: Perform comprehensive Functional Testing to ensure the final product works correctly.
