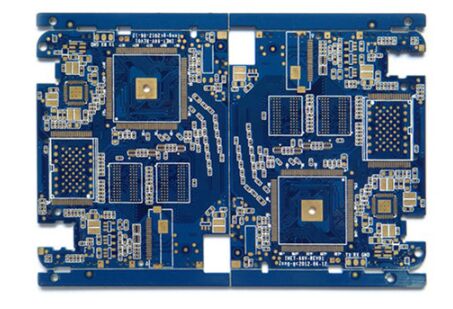

0.25mm Smallest Hole Electronic PCB Board with Blue Solder Mask for Precision Electronics and Circuit Integration
Brand Name:
Xingqiang
Certification:
ROHS,ISO,UL,IATF
Model Number:
As Per Customer's Model
Minimum Order Quantity:
Sample,1 Pc(5 Square Meters)
Price:
Based On Gerber Files
Standard Packaging:
Carton Or As Your Request
Delivery Time:
NA
Payment Terms:
,T/T,Western Union
Supply Ability:
100000㎡/Month
Product Details
Standard:
IPC Class 2
Other Service:
ODM/OEM/PCBA
Silkscreen:
Black White
Pcba Standard:
IPC-A-610E
Special Requirement:
Impedance Control Test
Material:
FR4, Rogers, Polyimide
Board Thickness:
0.4mm To 3.2mm
Solder Mask Color:
Green, Red, Blue, Black, White, Yellow
Product Description
Smallest Hole 0.25mm Electronic PCB Board Blue Solder Mask Color
Suitable for Precision Electronics and Circuit Integration
Product Overview
The Multilayer PCB Board is a highly versatile and reliable solution designed to meet the complex demands of modern electronic devices. This essential component offers exceptional performance, durability, and precision for advanced electronics manufacturing.
Crafted with high-quality FR4 materials and adhering to stringent industry standards, our multilayer PCB ensures superior electrical conductivity and mechanical strength, making it ideal for consumer electronics, industrial equipment, and specialized applications.
Key Features
- Product Name: Multilayer PCB Board
- Type: Multilayer PCB Board
- Board Thickness: 1.6mm (standard), ranging from 0.4mm to 3.2mm
- Minimum Line Width: 3mil (0.075mm)
- PCB Types Available: Single, Double, Multilayer PCB, Custom PCB
- Material: FR4 Multilayer PCB
- Quality: High-quality electronic PCB board suitable for various applications
- Reliability: Durable and reliable for enhanced performance
Technical Specifications
| Parameter | Specification |
|---|---|
| Standard Thickness | 1.6mm |
| Thickness Range | 0.4mm - 3.2mm |
| Minimum Hole Size | 0.25mm |
| Minimum Line Width | 3mil (0.075mm) |
| Solder Mask Color | Blue (with other color options available) |
| Quality Standard | IPC-A-610E PCBA Standard |
Applications
This advanced multilayer PCB board solution meets rigorous demands across multiple industries:
- Telecommunications equipment
- Automotive electronics
- Medical devices
- Industrial control systems
- Computing and data processing
- Aerospace systems
- Consumer electronics
The 6-layer PCB board structure enables enhanced signal integrity, reduced electromagnetic interference, and increased circuit complexity for sophisticated electronic devices.
Customization Services
Xingqiang offers comprehensive FR4 Multilayer PCB customization services tailored to your specific requirements:
- Design Flexibility: Custom designs based on your Gerber files or BOM list
- Solder Mask Colors: Green, red, blue, black, white, and yellow options
- Silkscreen Options: Black or white silkscreen available
- Quality Standards: IPC Class 2 standards compliance
- Certifications: ROHS, ISO, UL, and IATF certified
- Minimum Order: Sample size or 1 piece (5 square meters)
- Production Capacity: 100,000 square meters per month
- Payment Options: T/T and Western Union accepted
Quality Assurance
Our manufacturing process adheres to the IPC-A-610E PCBA standard, ensuring rigorous quality and reliability benchmarks. This guarantees that solder joints, component placements, and overall assembly quality meet the highest standards, reducing the risk of defects and failures in final products.
The FR4 material provides excellent electrical insulation and mechanical stability, maintaining integrity and functionality throughout the operational lifespan under diverse environmental conditions.
Overall Rating
5 star
100%
4 star
0
3 star
0
2 star
0
1 star
0
All Reviews
-
SAlthough there is a wide variety of colored PCBs available these days, the classic green solder mask remains the best choice—it’s much easier on the eyes when tracing circuits. The silkscreen printing on this batch is slightly misaligned, but this does not affect functionality. The shipping speed was truly impressive, making it ideal for projects with tight deadlines.
-
LThe board edges are milled precisely. You can see the clean layering of the stackup from the side view.
-
LThe large-sized board showed no warping, and the solder mask was thoroughly cured.
