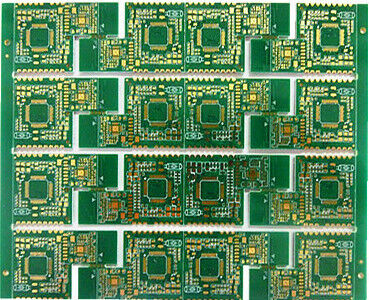

ROHS Compliant FR4 Multilayer PCB Board 4-Layer 120mm x 90mm for Stable Electrical Performance
Brand Name:
Xingqiang
Certification:
ROHS,ISO,UL,IATF
Model Number:
As Per Customer's Model
Minimum Order Quantity:
Sample,1 Pc(5 Square Meters)
Price:
Based On Gerber Files
Standard Packaging:
Carton Or As Your Request
Delivery Time:
NA
Payment Terms:
,T/T,Western Union
Supply Ability:
100000㎡/Month
Product Details
Soldmask:
Green
Size:
120mmX90mm
Special Requirement:
Impedance Control Test
Solder Mast:
Customized
Rohs Compliant:
Yes
Layers:
4L
Components Purchasing:
OK
Pcb Standard:
IPC-A-610 E Class II-III
Product Description
Product Overview
The Multilayer PCB Board is a high-quality FR4 Multilayer PCB designed to meet the demanding requirements of modern electronic applications. With a compact size of 120mm x 90mm, this 4-layer PCB offers an ideal solution for complex circuit designs that require multiple signal layers and enhanced electrical performance.
Manufactured using advanced processes and materials, this Electronic PCB Board ensures reliability, durability, and precision, making it suitable for a wide range of industries including telecommunications, automotive, consumer electronics, and industrial equipment.
Key Features
- Robust 4-layer construction for efficient signal routing and power planes
- Enhanced signal integrity and reduced electromagnetic interference (EMI)
- Heavy copper capability for improved current carrying capacity and heat dissipation
- Customizable solder mask options for improved protection and aesthetics
- Acceptance of Gerber files or design data for precise customization
Technical Specifications
| Parameter | Specification |
|---|---|
| PCB Standard | IPC-A-610 E Class II-III |
| RoHS Compliant | Yes |
| Samples | Available |
| Size | 120mm x 90mm |
| Layers | 4L |
| Board Thickness | 0.4mm to 3.2mm |
| Soldermask | Green |
| Production Requirements | Gerber File or Design Data Needed |
| Glass Epoxy | RO4003C |
| Components Purchasing | OK |
Applications
The Xingqiang Multilayer PCB Board is a versatile and reliable solution widely used in various industries and applications requiring high-density circuit integration and superior performance.
Primary Application Areas
- Telecommunications equipment
- Industrial machinery and automation
- Consumer electronics
- Automotive electronics
- Medical devices
- Aerospace technology
Certifications & Compliance
Certified with ROHS, ISO, UL, and IATF standards ensuring compliance and safety across different industries.
Frequently Asked Questions
What brand manufactures the Multilayer PCB Board?
The Multilayer PCB Board is manufactured by the brand Xingqiang.
Can I order a custom model for the Multilayer PCB Board?
Yes, the model number is made as per the customer's model specifications.
What certifications does the Xingqiang Multilayer PCB Board have?
The product is certified with ROHS, ISO, UL, and IATF standards.
What is the minimum order quantity for the Multilayer PCB Board?
The minimum order quantity is a sample or 1 piece, with a minimum of 5 square meters.
How is the price for the Multilayer PCB Board determined?
The price is based on the Gerber files provided by the customer.
What are the payment terms available for purchasing the Multilayer PCB Board?
Payment can be made via T/T or Western Union.
How is the product packaged for delivery?
The Multilayer PCB Board is packaged in cartons or as per the customer's request.
What is the supply capacity of Xingqiang for the Multilayer PCB Board?
Xingqiang has a supply ability of 100,000 square meters per month.
Overall Rating
5 star
100%
4 star
0
3 star
0
2 star
0
1 star
0
All Reviews
-
LOur go-to supplier for complex multilayer black PCBs. They handle the increased difficulty of black mask with ease.
-
ABlack boards typically absorb heat, but this multilayer board's heat resistance exceeded expectations. During localized high-temperature soldering with a hot air gun, the surrounding black solder paste did not change color or bubble, and the boundary between the solder pads and the black solder paste remained neat with no solder paste creeping.
-
BCompared to the manufacturers we previously worked with, this company offers better uniformity in the solder mask, a more stable gold plating layer, and superior soldering results.
