Custom 6-Layer PCB Board with Green Solder Mask and HASL Surface for Electronic Applications
Brand Name:
Xingqiang
Certification:
ROHS,ISO,UL,IATF
Model Number:
As Per Customer's Model
Minimum Order Quantity:
Sample,1 Pc(5 Square Meters)
Price:
Based On Gerber Files
Standard Packaging:
Carton Or As Your Request
Delivery Time:
NA
Payment Terms:
T/T,Western Union
Supply Ability:
100000㎡/Month
Product Details
PCB Type:
Custom MultiLayer PCB Board
Min Hole Size:
0.1Mm
Copper Overall:
0.5-5oz
Material:
FR-4
Min Line Spacing:
3Mil
Routing:
+/-0.1mm
Board Thickness:
0.2-5.0Mm
Dimension:
Customized
Silkscreen:
White,Black,Yellow,Red
Hole Size Tolerance:
PTH ±0.075, NTPH ±0.05
Solder Mask:
Green,Red,Blue,Yellow,Black,White
Product Description

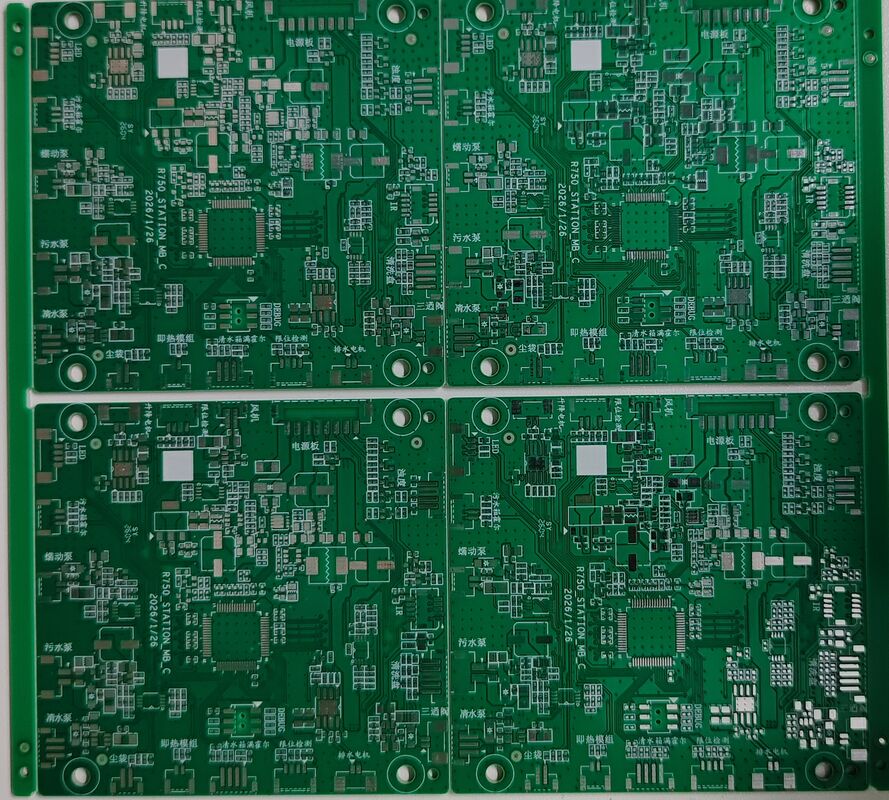

Custom 6-Layer PCB Board Green Solder Mask HASL Surface for Electronic Products
Why Choose Our 6-Layer FR4 Multilayer PCB?
The Multilayer PCB Board is an advanced electronic PCB board designed to meet the demanding requirements of modern electronic applications. This 6 Layer PCB Board is constructed using high-quality FR4 multilayer PCB materials, ensuring excellent performance, durability, and reliability.
With its precise engineering and robust design, this board is ideal for complex circuits that require multiple layers for signal routing, power distribution, and grounding. The standard green solder mask not only provides a visually appealing finish but also offers superior protection against oxidation, dust, and other environmental factors that could potentially damage the copper traces.
Technical Specifications
| Product Name | Multilayer PCB Board |
|---|---|
| Min Hole Size | 0.1mm |
| PCB Fabrication | Gerber Files or BOM List |
| Layer Count | Multilayer Electronic PCB (6 Layer) |
| Max Board Size | 528 mm × 600 mm |
| Special Requirement | Impedance Control Test |
| Layers | 1-30 Layer |
| Keyword | Heavy Copper PCB |
| Standard | IPC Class 2 |
| Application | Consumer Electronics, Automotive, Medical Devices, Telecommunications |
Applications
- Industrial Automation: PLC controllers, motor drives, and robust power supply units
- Telecommunications: Network routers, switches, and high-speed signal transceivers
- Automotive Systems: BMS (Battery Management Systems), infotainment, and engine control units
- Medical Electronics: Diagnostic monitors, imaging equipment, and portable lab instruments
- Consumer Technology: High-end computing, smart home hubs, and drone flight controllers
