Double Sided FR4 PCB Panel ENIG Surface Finish Custom PCB for Consumer Electronics
Product Details:
| Brand Name: | Xingqiang |
| Certification: | ISO 9001 / ROHS /UL / IATF 16949 (automotive) |
| Model Number: | As Per Customer's Model |
Payment & Shipping Terms:
| Minimum Order Quantity: | Sample,1 Pc(5 Square Meters) |
|---|---|
| Price: | Based On Gerber |
| Packaging Details: | As Per Customer's Request |
| Delivery Time: | NA |
| Payment Terms: | ,T/T,Western Union |
| Supply Ability: | 100000㎡/Month |
|
Detail Information |
|||
| Product Type: | Custom Double Sided PCB | Copper Thick: | 1 OZ |
|---|---|---|---|
| 100% E-Test: | Yes | Minimum Hole Size: | 0.1mm |
| Board Thickness: | 0.2-5.0mm | Pcb Base Material: | FR4 High TG |
| Maxlayer: | 1-30 Layers | PTH: | +/-0.075mm |
| Surface Treatment: | HASL/ENIG/OSP | PCB Standard: | IPC-A-600, IPC-6012 |
| Quotation: | Gerber Files Or BOM List | Solder Mask Color: | Green,Red,White,Yellow,Blue,Black |
| Highlight: | Double Sided FR4 PCB Panel,ENIG Surface Finish PCB,Custom PCB for Consumer Electronics |
||
Product Description
Product Description:

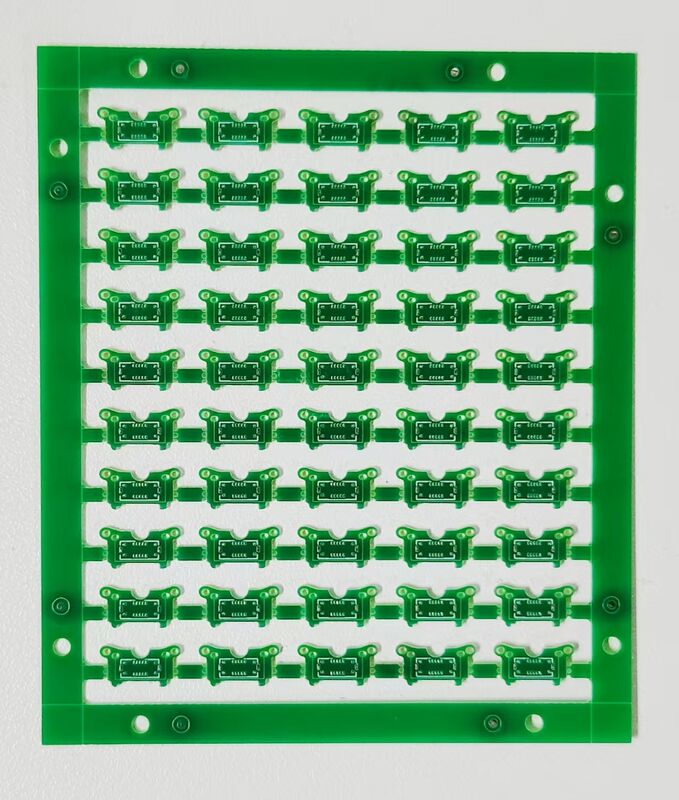

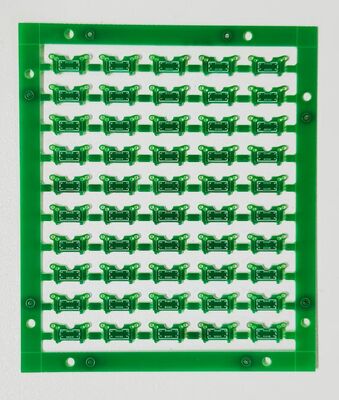

This is a high-precision double-sided rigid PCB panel made of FR-4 material, featuring ENIG (immersion gold) surface finishing and green solder mask. Designed for small connectors, consumer electronics and wearable devices, it supports V‑cut panelization for efficient SMT assembly and mass production. XingQiang offers custom PCB manufacturing, strict quality control, RoHS/UL/IPC compliance, and reliable export services worldwide.Double Sided PCB Product Features:
| Item | Description |
|---|---|
| Board Type | Rigid PCB panel / Multi-unit array |
| Layers | 2-layer / Double-sided |
| Base Material | FR-4 glass epoxy |
| Surface Finish | ENIG (Immersion Gold) |
| Solder Mask | Green solder mask |
| Structure | Panelized with V-cut for easy depaneling |
| Application | Small connectors, consumer electronics, wearables, SMT assembly |
| Key Features | High precision, good solderability, anti-oxidation, stable performance |
| Compliance | RoHS compliant, IPC standard, lead-free |
| Service | Custom design & manufacturing, global export supported |
FAQ:
Q1: What brand manufactures the Double Sided PCB?
A1: The Double Sided PCB is manufactured by the brand Xingqiang.
Q2: Can I order a custom model for the Double Sided PCB?
A2: Yes, the model number is as per the customer's model specifications.
Q3: What certifications does the Double Sided PCB have?
A3: The Double Sided PCB is certified with ISO 9001, ROHS, UL, and IATF 16949 (automotive).
Q4: What is the minimum order quantity for the Double Sided PCB?
A4: The minimum order quantity is a sample or 1 piece, with a minimum area of 5 square meters.
Q5: How is the price for the Double Sided PCB determined?
A5: The price is based on the Gerber files provided by the customer.
Q6: What are the payment terms available for purchasing the Double Sided PCB?
A6: Payment can be made via T/T or Western Union.
Q7: How are the Double Sided PCBs packaged?
A7: Packaging details are done as per the customer's request.
Q8: What is the supply ability for the Double Sided PCB?
A8: The supply ability is 100,000 square meters per month.
