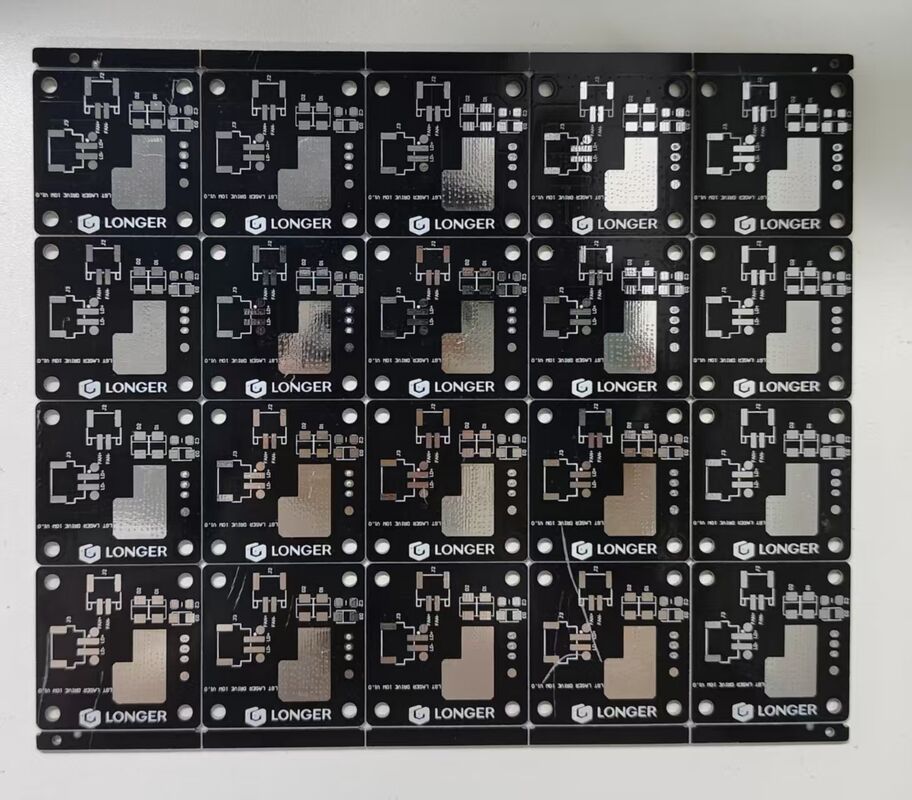

1.6mm Thickness Custom Double Sided PCB Black Soldermask HASL100%E-test for Electronics
Brand Name:
Xingqiang
Certification:
ISO 9001 / ROHS /UL / IATF 16949 (automotive)
Model Number:
As Per Customer's Model
Minimum Order Quantity:
Sample,1 Pc(5 Square Meters)
Price:
Based On Gerber
Standard Packaging:
As Per Customer's Request
Delivery Time:
NA
Payment Terms:
,T/T,Western Union
Supply Ability:
100000㎡/Month
Product Details
Highlight:
1.6mm thick double sided PCB
,black soldermask double sided PCB
,HASL double sided PCB with e-test
Boardtype:
Custom Double Sided PCB
Layer:
2
Materials:
FR4
Legend Color:
White
Cu Thickness:
1/1OZ
Feature:
100% E-test
PCB Price:
Gerber Files
Dimension:
Customized
Pcba Standard:
IPC-A-610 E Class II
Hole Size Tolerance:
PTH ±0.075, NTPH ±0.05
Custom Layer Count:
2-Layers,4-Layers,6-Layers,8-Layers Or 8L+
Normal Thickness:
1.6mm,1.2mm,1.0mm,0.8mm,0.6mm,0.4mm,0.2mm
Product Description
What Is a Double-Sided PCB?:
A double-sided PCB, or double-sided board, is a printed circuit board with conductive copper traces on both its top and bottom surfaces. Unlike single-sided boards, it allows components and wiring on two layers, increasing routing density and design flexibility. Vias, small plated holes, connect the two layers electrically, enabling complex circuits in limited space.
Technical Parameters:
| Product Type | Dual Sided PCB / Double Sided Printed Circuit Board |
| Layer | 2 |
| Routing | 0.1mm |
| Min Line Spacing | 3 Mil |
| Legend Color | White |
| Count | 1-30L |
| Feature | 100% E-test |
| Profile | Rout |
| Minimum Hole Diameter | 0.1 mm |
| Dimension | Customized |
| Max Board Size | 528*600mm |
| PCB Standard | IPC-A-610 E Class II |
Applications:
- Smartphones & Wearables: Mobile phones, smartwatches, wireless earphones, and fitness trackers.
- Computers & Peripherals: Laptops, keyboards, mice, printers, and power adapters.
- Home Entertainment: Televisions, audio systems, game consoles, speakers, and set-top boxes.
- Network & Communication: Wi-Fi routers, modems, Bluetooth speakers, and intercom devices.
- Home Appliances: Air conditioners, refrigerators, small kitchen appliances, and control panels.
- Digital & Portable Devices: Digital cameras, power banks, fans, LED lighting, and e-readers.
