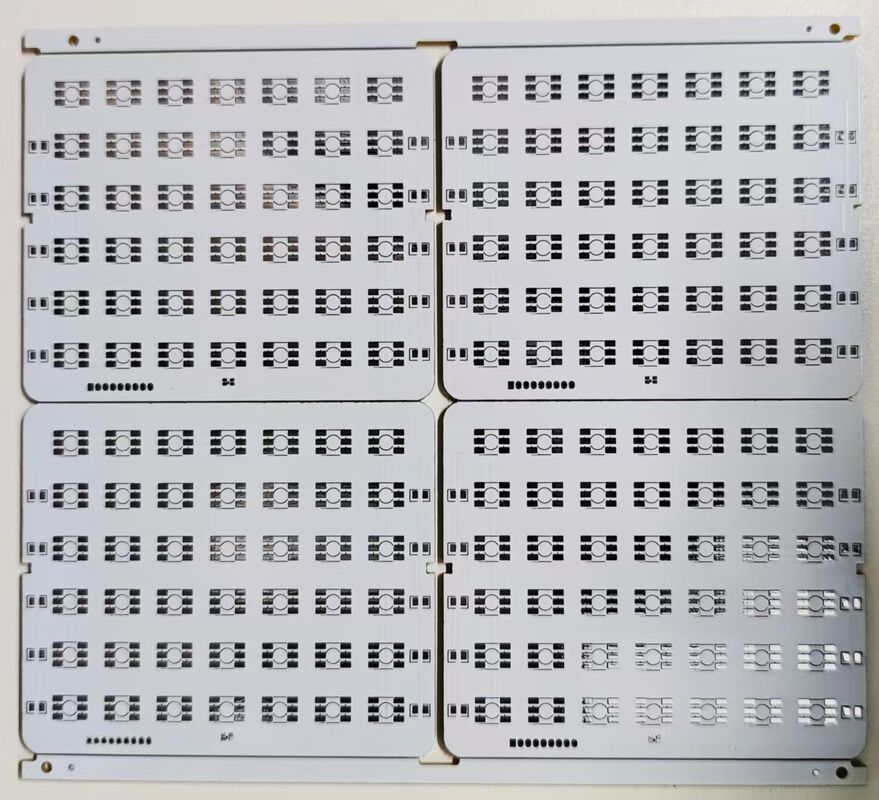

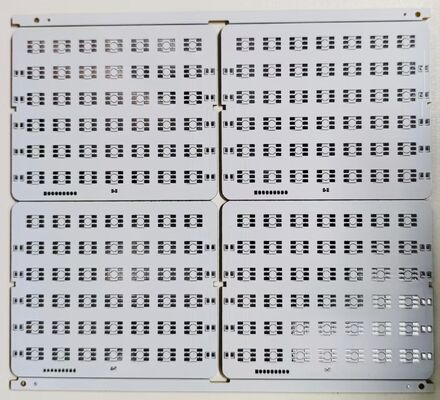

100% E Test Custom Double Sided Printed Circuit Board Ideal for Electronic Applications
custom double sided PCB
,printed circuit board for electronics
,E Test certified PCB
High Power LED Aluminum PCB Custom Manufacturing | Xingqiang:
This is a high-power LED aluminum PCB (MCPCB) manufactured by Xingqiang Circuit Board. It features excellent thermal dissipation, high thermal conductivity dielectric layer, and supports high-current LED arrays. Surface finishes include lead-free HASL, ENIG, immersion gold and OSP. We provide full customization based on customers’ Gerber files, and comply with RoHS, UL, CE and IPC standards. Widely used in street lights, flood lights, high bay lights and automotive lighting, with reliable prototyping, SMT assembly and mass production services.
Core Features of Our Double Sided PCB:
- Excellent thermal dissipation for high-current LED use
- Customizable from customer Gerber files
- Environment-friendly and internationally certified
- Flexible prototype & mass production service
- Stable quality with cost-effective price
FAQ:
Q1: What brand is the Double Sided PCB?
A1: The Double Sided PCB is manufactured under the brand name Xingqiang.
Q2: Can I order a custom model for the Double Sided PCB?
A2: Yes, the model number is as per the customer's model, allowing for customization according to your requirements.
Q3: What certifications does the Double Sided PCB have?
A3: Our Double Sided PCBs are certified with ISO 9001, ROHS, UL, and IATF 16949 (automotive), ensuring high quality and compliance with industry standards.
Q4: What is the minimum order quantity for the Double Sided PCB?
A4: The minimum order quantity is a sample or 1 piece, which equals 5 square meters.
Q5: What payment methods are accepted for purchasing the Double Sided PCB?
A5: We accept payment via T/T (Telegraphic Transfer) and Western Union.
Q6: How is the Double Sided PCB packaged?
A6: Packaging is done as per the customer's request to ensure the product meets your specific needs.
Q7: What is the supply capacity for the Double Sided PCB?
A7: We have a supply ability of up to 100,000 square meters per month.
Factory showcase
PCB Quality Testing
Certificates and Honors
-
BGreat double-sided PCB with white solder mask. Attractive appearance, clear silkscreen, and stable performance. Slightly pricier than green solder mask PCBs, yet well worth it for lighting and display applications.
-
PThe via tenting with white mask is consistent. No exposed copper at the via rims, preventing any potential short circuits during SMT while maintaining the clean white look.
