4-Layer ENIG Custom PCB High TG FR-4 Stable Performance for Outdoor LED Billboard
4-layer ENIG custom PCB
,high TG FR-4 PCB board
,outdoor LED billboard PCB

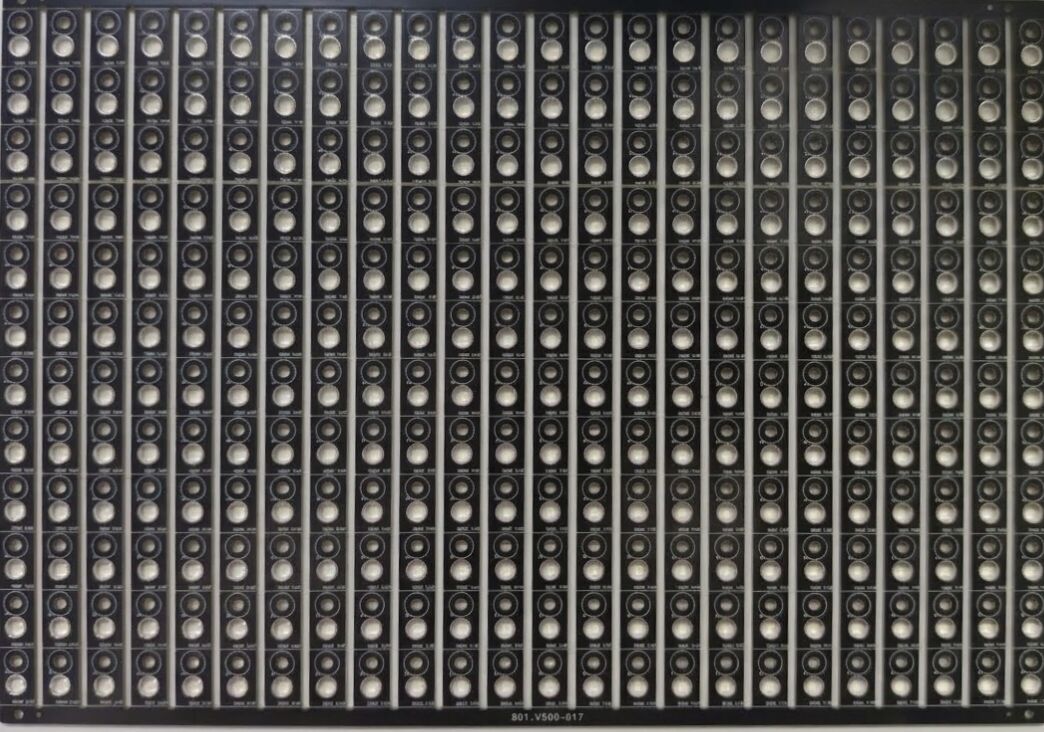

Custom 4-Layer DIP LED Display PCB High-TG FR-4 & ENIG Surface Finish:
Crafted by Xingqiang PCB—a leading manufacturer since 1995 with ISO 9001 & IATF 16949 certifications—this highly customizable LED display PCB is specially engineered for DIP outdoor full-color screens and billboards. Built with 4-layer high-TG FR-4 and UL 94 V-0 flame-retardant materials, it delivers excellent thermal stability, low warpage, and long-term outdoor reliability. With precision ENIG surface treatment from automated production, it offers outstanding solderability, oxidation resistance, and stable electrical performance. Optimized for LED driving, signal transmission and power distribution, it reduces interference and ensures uniform brightness. Fully RoHS, Reach and IPC Class 2 compliant, this board supports fully tailored layer stack-up, impedance control, pad design, thickness and copper weight. Backed by strict quality control and professional OEM/ODM service, Xingqiang provides flexible custom solutions to meet diverse requirements for stage, stadium, traffic guidance and industrial display projects.
Key Features of Custom LED PCB:
• 4-layer high-TG FR-4 material with UL 94 V-0 flame retardancy, high thermal stability and low warpage
• ENIG surface finishing ensures excellent solderability, oxidation resistance and long service life
• Stable LED driving, signal transmission and power distribution with low interference and uniform brightness
• Fully compliant with RoHS, Reach and IPC Class 2 standards
• Highly customizable: layer stack-up, impedance, pad design, thickness and copper weight
• Strict quality control with ISO 9001 & IATF 16949 certified production system
• Professional OEM/ODM service to meet stage, stadium, traffic and industrial display demands
Your PCB Customization File Checklist:
• Gerber files (circuit, solder mask, silkscreen, drilling data)
• BOM list and schematic diagram
• PCB dimension drawing and layer stack-up design
• Requirements for thickness, copper weight and surface finishing
• Impedance control and tolerance specifications
• Testing standards and quality acceptance requirements
-
