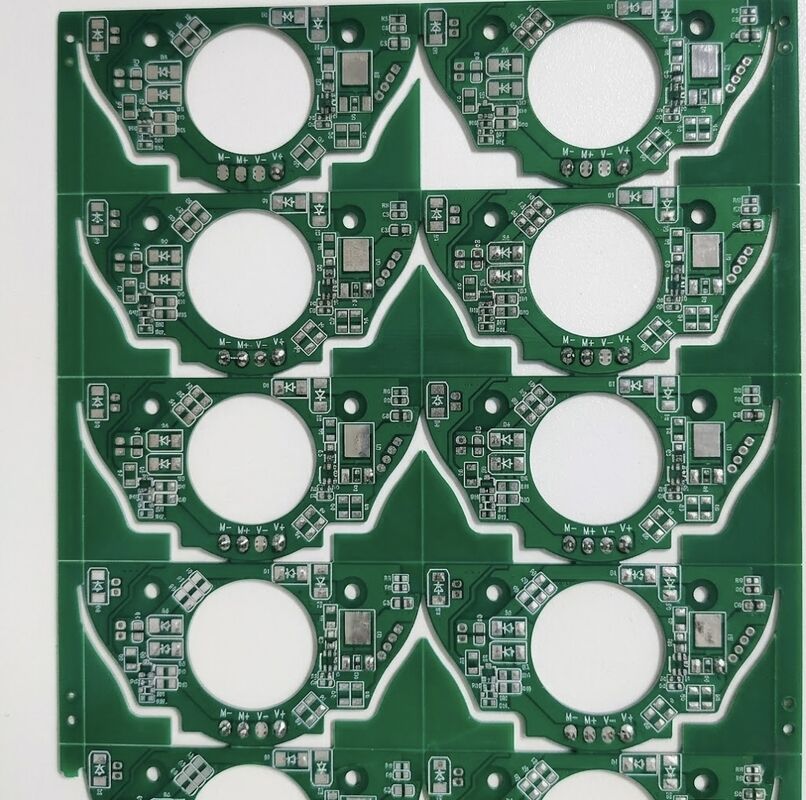

Custom FR4 Double PCB with Free DFM Check, ISO9001 Certified Manufacturing Service
Brand Name:
Xingqiang
Certification:
ISO 9001 / ROHS /UL / IATF 16949 (automotive)
Model Number:
As Per Customer's Model
Minimum Order Quantity:
Sample,1 Pc(5 Square Meters)
Price:
Based On Gerber
Standard Packaging:
As Per Customer's Request
Delivery Time:
NA
Payment Terms:
,T/T,Western Union
Supply Ability:
100000㎡/Month
Product Details
Highlight:
Custom FR4 double sided PCB
,Double sided PCB with DFM check
,ISO9001 certified double sided PCB
PCB Name:
Custom Double PCB
Legend Color:
White
Min Line Width:
3Mil
Routing:
0.1mm
Layer Count:
1-30 Layers
Board Thickness:
0.2-5.0mm
Fabrication Basis:
Gerber Files
Surface Treatment:
ENIG/OSP/HASL
Silkscreen:
White,Black,Red,Yellow
Hole Size Tolerance:
PTH ±0.075, NTPH ±0.05
Slodermask:
Black,Yellow,Red,White,Green,Blue
Functions:
Flame Retardant,Low Signal Loss,Moisture Resistant
Product Description
XingQiang Circuit: Your Reliable Partner for FR-4 Double-Sided PCBs—From DFM to Global Mass Production:
XingQiang Circuit Board Technology Co., Ltd. provides high-quality custom double-sided PCBs for industrial, automotive, and power control applications. Our FR-4 double-layer boards feature stable performance, high thermal resistance, and reliable conductivity. Fully compliant with RoHS, ISO 9001, UL and IPC standards, they support precise routing, efficient heat dissipation, and long-term durability. We offer DFM analysis, fast prototyping, small-batch and mass production with strict quality testing. Ideal for motor drivers, control modules, and industrial equipment, our custom double-sided PCBs deliver consistent quality for global B2B partners.
Technical Specifications: Custom Double-Sided FR-4 PCB
| Feature/Parameter | Specifications & Capabilities |
| Product Type | Double-Sided (2-Layer) Rigid PCB |
| Base Material | FR-4 (High Tg / Standard Tg available) |
| Applications | Industrial Controls, Automotive Electronics, Motor Drivers, Power Modules |
| Compliance & Standards | RoHS, ISO 9001, UL, IPC Class 2 |
| Min. Trace Width/Space | 3mil / 3mil (0.075mm) |
| Min. Hole Size | 0.1mm (8mil) |
| Quality Testing | AOI (Automated Optical Inspection), E-test (Flying Probe/Fixture), X-Ray |
| Value-Added Services | DFM Analysis, Fast Prototyping, Mass Production |
What Applications Is This Custom PCB Ideal for Your Project?:
- Motor drivers & BLDC motor control modules
- Industrial automation & equipment control boards
- Power supply & power driver control circuits
- Automotive electronics & vehicle control systems
- Consumer electronics & smart home control boards
- LED lighting & small household appliance driver boards
- Sensor modules & instrumentation control circuits
