Custom Rigid PCB Anti-Scratch Solder Mask , Professional Craftsmanship & After-Sales
Product Details:
| Brand Name: | Xingqiang |
| Certification: | ISO 9001 / ROHS /UL / IATF 16949 (automotive) |
| Model Number: | As Per Customer's Model |
Payment & Shipping Terms:
| Minimum Order Quantity: | Sample,1 Pc(5 Square Meters) |
|---|---|
| Price: | NA |
| Packaging Details: | Carton Or As Your Request |
| Delivery Time: | NA |
| Payment Terms: | ,T/T,Western Union |
| Supply Ability: | 100000㎡/Month |
|
Detail Information |
|||
| Board Type: | Rigid PCB Board | Material: | FR4 |
|---|---|---|---|
| 100% E-Test: | Yes | Copper Thickness: | 1OZ |
| Layer Count: | 1-30L | Board Thickness: | 0.2-5.0Mm |
| PCB Price: | Gerber Files | Silkscreen Color: | White/R/B/Y |
| PCB Dimension: | Customizable | Surface Finish: | HASL, ENIG, OSP |
| Hole Size Tolerance: | PTH ±0.075, NTPH ±0.05 | Soldermaskcolor: | Green, Red, Blue, Black, White, Yellow |
| Highlight: | custom rigid PCB solder mask,anti-scratch rigid PCB board,professional rigid PCB with warranty |
||
Product Description
High Precision Audio PCB Custom & Reliable:

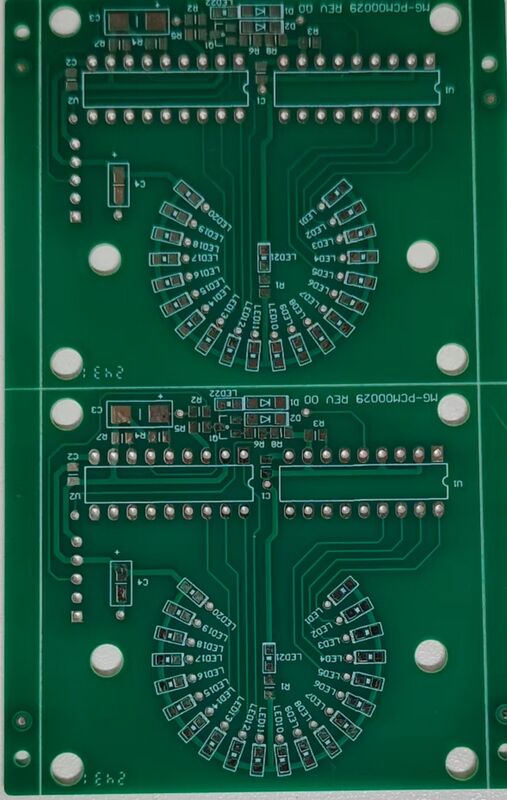

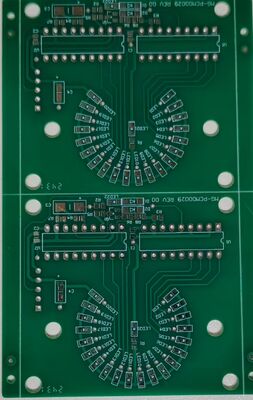

Xingqiang Circuit Board Technology Co., Ltd. specializes in custom-designed PCBs. We provide high-precision dual-channel 20-LED audio level indicator boards with ISO9001, RoHS, and IPC certifications. Featuring premium green solder mask, advanced craftsmanship, strict quality control, lead-free process, and reliable long-term performance. We support OEM/ODM customization, PCB assembly, fast prototyping, and professional one-stop service for audio equipment, amplifiers, and DIY projects.
Technical Parameters:
| Board Type | Rigid PCB Board |
| Surface Finish | HASL, ENIG, OSP |
| Characteristic Service | ODM/OEM/PCBA |
| Min Line Spacing | 3Mil |
| Thickness | 0.2-5.0mm |
| Copper Overall |
0.5-5oz |
| Standard | IPC-Class 2 |
| Soldr Mask Color | White, Red, Green, Blue,Yellow,Black |
| Regular Layer |
2-Layers,4-Layers,6-Layers,8-Layers or 8L+ |
Support and Services:
• Our Rigid PCB Boards are designed to meet the highest standards of quality and reliability. For technical support, we provide comprehensive assistance including design consultation, troubleshooting, and performance optimization to ensure your project’s success.
• Our support team is well-versed in various industry standards and can help you with material selection, layer stack-up, impedance control, and thermal management to match your specific application requirements.
• We also offer value-added services such as prototype development, testing, and certification support to streamline your product development cycle.
Factory showcase
PCB Quality Testing
Certificates and Honors
