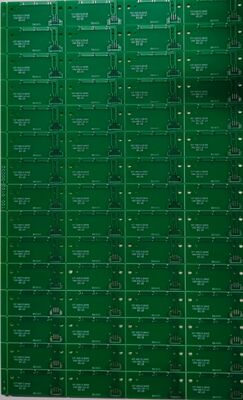

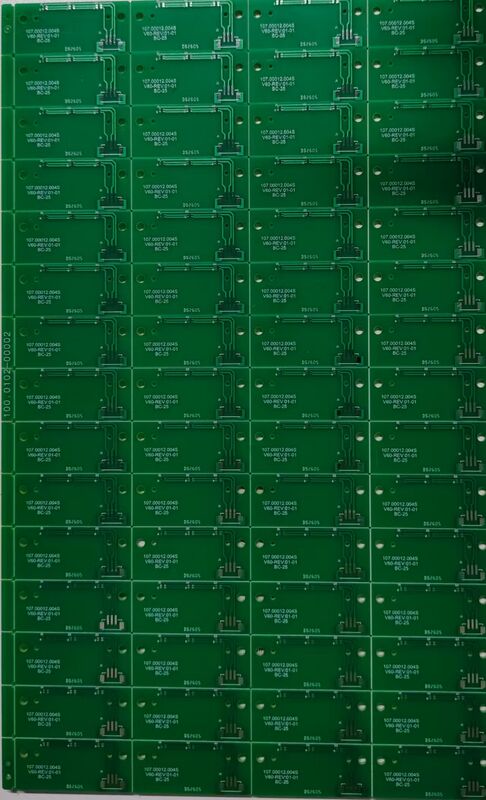

Custom Rigid PCB Board 2-Layer FR-4 Green Solder Mask HASL for Consumer Electronics
Product Details:
| Brand Name: | Xingqiang |
| Certification: | ISO 9001 / ROHS /UL / IATF 16949 (automotive) |
| Model Number: | As Per Customer's Model |
Payment & Shipping Terms:
| Minimum Order Quantity: | Sample,1 Pc(5 Square Meters) |
|---|---|
| Price: | NA |
| Packaging Details: | Carton Or As Your Request |
| Delivery Time: | NA |
| Payment Terms: | ,T/T,Western Union |
| Supply Ability: | 100000㎡/Month |
|
Detail Information |
|||
| Product Name: | Custom Rigid PCB Board | Minimumlinewidth: | 3 Mil |
|---|---|---|---|
| Material: | FR4 | Min Hole Size: | 0.1Mm |
| Copper Overall: | 0.5-5oz | Board Thickness: | 0.2-5.0MM |
| Impedance Control: | +/-10% Or +/-5% | Quotation: | Based On Gerber Files |
| Hole Tolerance: | PTH ±0.075, NTPH ±0.05 | Custom Layers: | 2-Layers,4-Layers,6-Layers,8-Layers Or 8L+ |
| Highlight: | 2-layer rigid PCB board,FR-4 rigid PCB board,HASL rigid PCB board |
||
Product Description
High Precision Custom Rigid PCB RoHS & ISO9001 Certified PCB Manufacturer:
Xingqiang provides custom double-sided rigid PCB with FR-4 base material, green solder mask, HASL surface treatment and 1.6mm standard thickness. Our PCBs feature high precision, good heat resistance and long service life. Certified with RoHS, ISO9001, we offer free DFM check, fast delivery, flexible customization and stable mass production capacity, widely used in industrial control, IoT modules and consumer electronic products.
FR4 Rigid PCB Board Features:
- Product Name: Rigid PCB Board
- Material: FR4
- Regular Board Thickness: 1.6MM
- Hole Tolerance: PTH ±0.075, NTPH ±0.05
- Layer: 2/4/6/8L or 8+
- Max Board Size: 528*600 MM
- Type: Rigid Printed Board
How We Manufacture Your Custom Rigid PCB?:
1.PCB Design & DFM Review: Check customer files for manufacturability.
2. Material Preparation: Cut FR‑4 base material to required size.
3. Drilling: Precision drill PTH & NPTH holes with tight tolerance.
4. Plating & Copper Deposition: Electroplate holes and circuits.
5. Imaging & Etching: Transfer patterns and etch excess copper.
6. Solder Mask & Surface Finish: Apply green solder mask and HASL.
7. Silk-screen, Profiling & Testing: Print logos, rout shape, and perform electrical inspection.
8. Final Inspection & Packaging: Qualify and pack for shipment.
