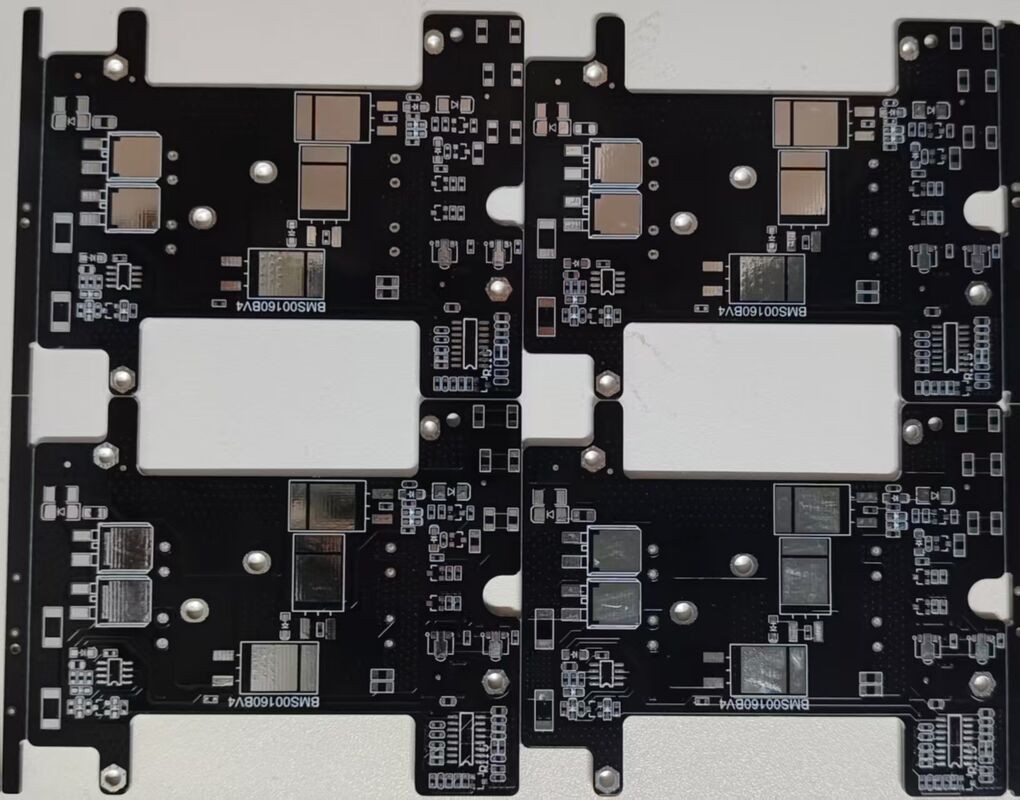

Custom BMS PCB Board Battery Management System OEM/ODM/PCBA Servies Support
Brand Name:
Xingqiang
Certification:
ROHS,ISO,UL,IATF
Model Number:
As Per Customer's Model
Minimum Order Quantity:
Sample,1 Pc(5 Square Meters)
Price:
Based On Gerber Files
Standard Packaging:
Carton Or As Your Request
Delivery Time:
NA
Payment Terms:
,T/T,Western Union
Supply Ability:
100000㎡/Month
Product Details
Highlight:
Custom BMS PCB Board
,Battery Management System PCB
,Multilayer PCB Board OEM
Pcb:
Custom Multilayer Pcb
Copper Thickness:
1OZ
Outer Cu Weight:
0.5-5 0z
Layer Count:
1-30 Layers
Outline:
CNC Routing
Operating Temperature Range:
-40℃ To +125℃
Surface Treatment:
HASL/OSP/ENIG
Customization Files:
Gerber Files Or BOM List
Soldermask Color:
Black/Red/Green/Yellow/Blue/White
Normal Thickness:
2.0mm/1.6mm/1.2mm/1.0mm/0.8mm/0.6mm/0.4mm/0.2mm
Product Description
Factory Direct Multilayer Black Heavy Copper PCB:
Our Black rigid PCB with heavy copper.Designed for BMS applications.This black rigid board delivers reliable performance in high-current, high-temperature environments. Customizable layers, materials (FR4, Rogers), and surface finishes. ISO-certified, factory direct with DFM support and turnkey assembly.Technical Parameters:
| PCB Type | Multilayer PCB, Custom PCB |
| PCBA Testing | Support |
| Outline | CNC Routing |
| Outer Cu Weight | 0.5-5oz |
| Special Requirement | Precise Impedance Control |
| SMT DIP Assembly | Support |
| Finish | HASL / OSP / ENIG |
| Hole Size Tolerance | PTH ±0.075, NTPH ±0.05 |
High-Reliability Custom PCB Solutions for New Energy Applications:
• Widely used in battery management systems (BMS) for Li-ion & LiFePO4 battery packs, ensuring stable charge/discharge control and overcurrent/overtemperature protection.• Applied to energy storage systems, solar inverters, UPS and industrial power supplies that require high-current and high-temperature resistance.
• Suitable for electric vehicles, e‑bikes, scooters and other power tools, providing reliable circuit support for high‑power discharge.
• Also ideal for industrial control equipment, automotive electronics and high‑reliability power moduleswith strict performance demands.
Factory showcase
PCB Quality Testing
Certificates and Honors
Overall Rating
5 star
100%
4 star
0
3 star
0
2 star
0
1 star
0
All Reviews
-
PThe battery panel features a uniform, glossy black coating, free from bubbles or pinholes, and remains cool even during prolonged use.
-
PThe battery panel features a uniform, glossy black coating, free from bubbles or pinholes, and remains cool even during prolonged use.
