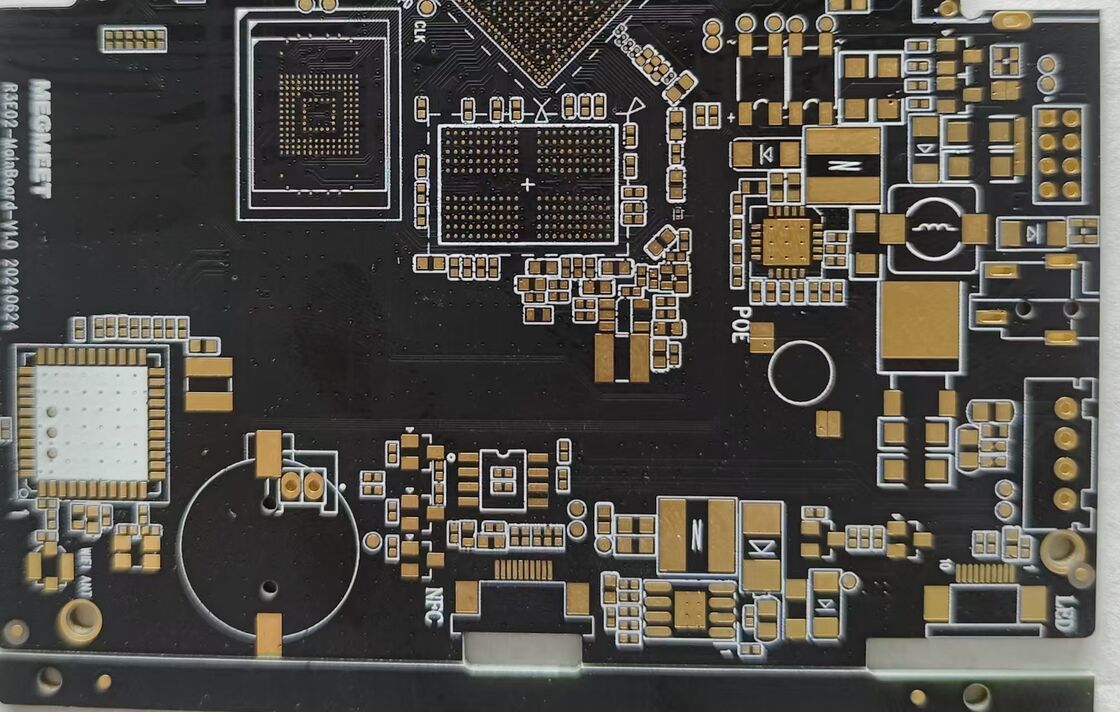

Custom 8-12 Layer Mulit-layer PCB with ENIG Surface Finish for Industrial Devices
Product Details:
| Brand Name: | Xingqiang |
| Certification: | ISO 9001 / ROHS /UL / IATF 16949 (automotive) |
| Model Number: | As Per Customer's Model |
Payment & Shipping Terms:
| Minimum Order Quantity: | Sample,1 Pc(5 Square Meters) |
|---|---|
| Price: | Based On Gerber |
| Packaging Details: | As Per Customer's Request |
| Delivery Time: | NA |
| Payment Terms: | ,T/T,Western Union |
| Supply Ability: | 100000㎡/Month |
|
Detail Information |
|||
| Pcb Type: | Custom Double Sided Panel | Minimum Hole Size: | 0.1mm |
|---|---|---|---|
| Minimum Space: | 0.075mm | Copper Overall: | 0.5-5oz |
| NPTH: | +/-0.05MM | Quality Certificated: | ROHS,CE,UL,ISO,IATF |
| Surface Treatment: | ENIG,OSP,HASL,Lead Free | Material: | High-Tg FR‑4 Epoxy Glass Fiber |
| Silkscreen Color: | White,Black,Red,Yellow,Blue,Green | Pcb Board Thickness: | 1.6mm/1.2mm/1.0mm/0.8mm/0.4mm |
| Highlight: | 8-12 layer multilayer PCB board,ENIG surface finish PCB,industrial multilayer PCB with warranty |
||
Product Description
XingQiang PCB – Strictly Tested for Industrial Electronics:
XingQiang Industrial Custom Printed Circuit Board is designed for high-performance industrial control, automation equipment, new energy, IoT gateways, and intelligent electronic systems.XingQiang provides a one‑stop PCB solution from engineering evaluation, rapid prototyping, to mass production and assembly.Every board undergoes strict electrical testing, AOI inspection, and quality control to ensure consistency and reliability.
Advantages of XingQiang Custom Industrial PCB :
Full customization: Support customized size, thickness, layers, shape and interface to match different equipment structures.
High-performance materials: Use high-Tg FR-4 material with high temperature resistance, moisture proof and long-term stability.
Excellent reliability: High insulation, high voltage isolation, anti-interference, suitable for harsh industrial environments.
Professional surface treatment: Available in ENIG, HASL, OSP to ensure strong solderability and anti-oxidation.
One-stop service: Provide engineering evaluation, rapid prototyping, mass production and assembly solutions.
Technical Parameters:
| Product Name | Custom Muliti-layer PCB |
| Board Thickness | 0.2-5.0mm |
| Minimum Line Width | 0.075mm |
| PCB Thickness | 1.6mm |
| PCB Board Thickness | 1.6mm or On Your Request |
| Minimum Space | 0.075mm |
| Reinforcement Material | High Tg FR4 |
| Normal Layer | 2 Layer,4 Layer,6 Layer,8 Layer or 8L+ |
| Solder Ink Color | Green,Red,White,Yellow,Blue,Black |
