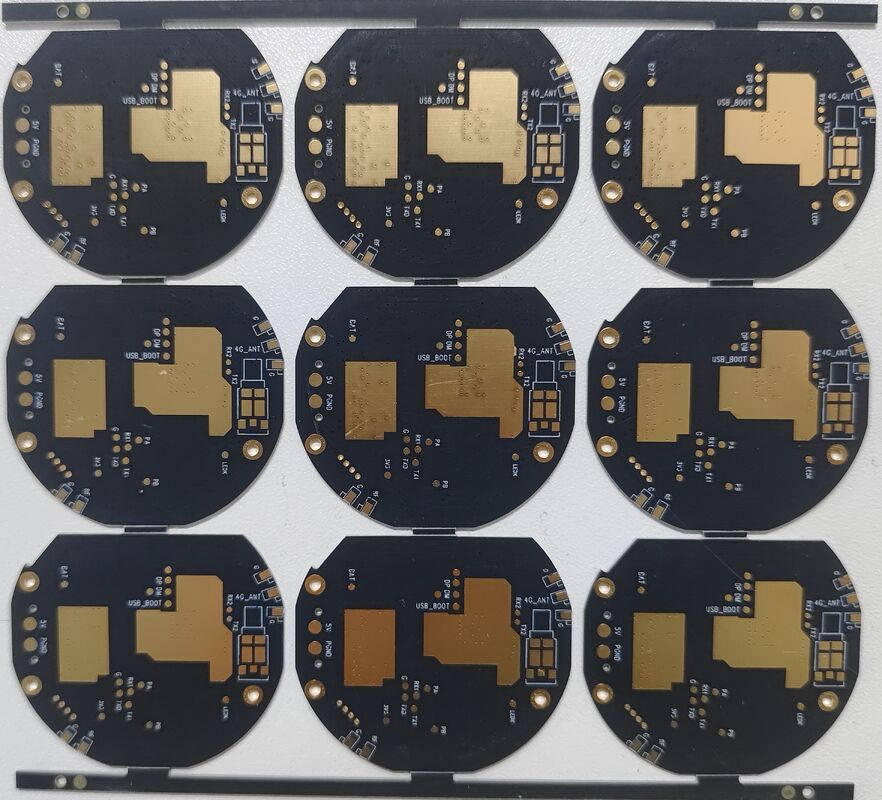

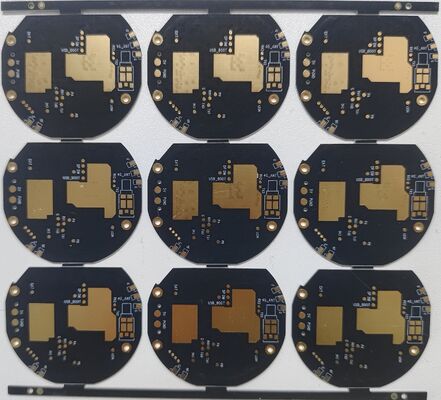

Professional ENIG PCB Custom Panelization Black Solder Mask for High-End Electronics
Brand Name:
Xingqiang
Certification:
ROHS,ISO,UL,IATF
Model Number:
As Per Customer's Model
Minimum Order Quantity:
Sample,1 Pc(5 Square Meters)
Price:
Based On Gerber Files
Standard Packaging:
Carton Or As Your Request
Delivery Time:
NA
Payment Terms:
,T/T,Western Union
Supply Ability:
100000㎡/Month
Product Details
Highlight:
ENIG PCB custom panelization
,black solder mask PCB
,high-end multilayer PCB board
PCB Name:
Custom Multilayer PCB Board
Surface Mount Technology:
Yes
Customized:
Yes
Min.Hole Size:
0.1mm
Copper Overall:
0.5-5oz
Minimum Trace Width:
3 Mil (0.075mm)
Surface Finish:
HASL, ENIG, OSP
Slodermask Color:
Black,Green,Yellow,Blue,White,Red
Normal Layer:
2-layers,4-layers,6-layers,8-layers Or Customized
Board Thickness:
1.6Mm/1.2Mm/1.0Mm/0.8Mm/0.6Mm/0.4Mm/0.2Mm
Product Description
Searching for Custom PCB Services to Match Your Project Needs:
Your vision, our precision. At Xingqiang, we don’t just manufacture PCBs—we co-create them. Whether you need a unique round form factor, specialized signal routing for 4G communication, or specific material choices, our fully customizable process adapts to your project. From small-batch prototypes to mass production, we deliver tailored solutions that align with your technical and business goals.
Basical Features:
- Product Name: Multilayer PCB Board
- Material: FR4
- Layer Count: 1-30 Layers
- Surface Finish Options: HASL, ENIG, OSP
- Country of Origin: China
- Impedance Control: Available On Request
- Minimum Trace Width: 3 Mil (0.075mm)
- Soldermask Color: Green
FAQ:
1.Q: How many layers can your circuit boards provide?A: We support 1–30 layer PCB customization. This standard product is a 6-layer FR4 PCB, and higher layer counts can be customized according to your requirements.
2.Q: Do your circuit boards support customization?
A: Yes, we support full customization. You can provide your Gerber files and BOM list, and we will offer a precise quotation based on your specifications and project needs.
3.Q: What information do Gerber files usually include?
A: Gerber files generally include: PCB type, board thickness, solder mask color, surface finish, trace width, and impedance control requirements. For SMT assembly, BOM and component placement files are also required.
4.Q: What is your minimum order quantity (MOQ) for PCBs?
A: Our MOQ is 1 piece. Larger order quantities enjoy more competitive unit pricing.
5.Q: What surface finish options do you offer?
A: We provide HASL, ENIG, and OSP surface finishes to meet different application environments and reliability requirements.
6.Q: Do you have relevant certifications?
A: Our products comply with international standards and hold ISO, UL, CE, RoHS certifications. All PCBs pass strict quality inspection before delivery.
7.Q: What payment methods do you accept?
A: We accept Western Union for small orders and samples, and T/T for bulk orders, ensuring secure and convenient transactions for both parties.
Factory showcase
PCB Quality Testing
Certificates and Honors
Overall Rating
5 star
100%
4 star
0
3 star
0
2 star
0
1 star
0
All Reviews
-
JNot a "budget" shop, but the price-to-quality ratio is balanced. The absence of defects during assembly justifies the slightly higher unit cost compared to no-name vendors.
-
GManufactured strictly in accordance with Gerber files. High precision in slots and hole diameters, consistent electrical performance, and excellent batch-to-batch uniformity.
