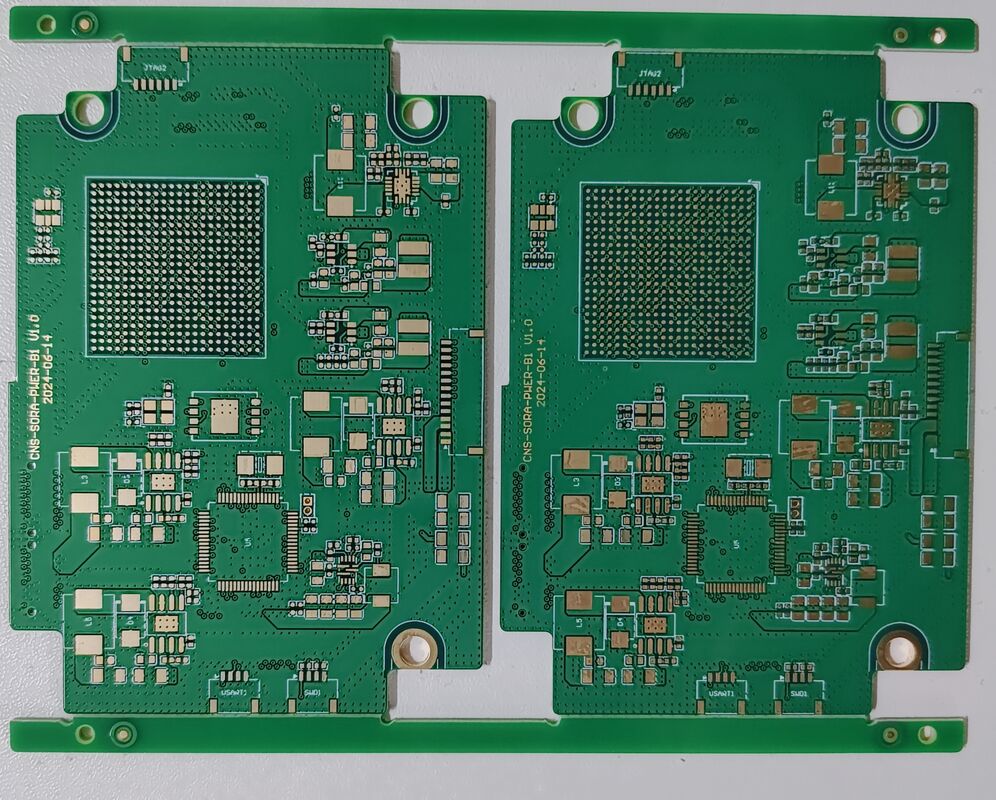

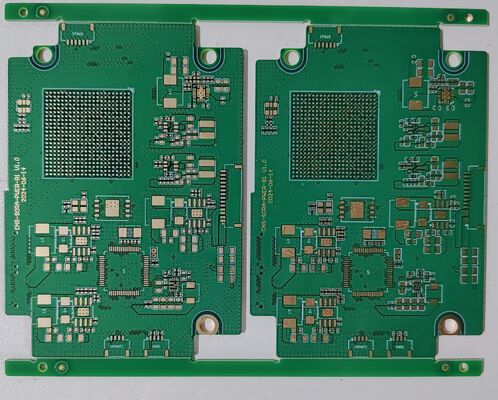

Custom Multi-layer Circuit Board for Embedded Systems, BGA Compatible, RoHS Compliant
Brand Name:
Xingqiang
Certification:
ISO 9001 / RoHS /UL / IATF 16949 (automotive)
Model Number:
As Per Customer's Model
Minimum Order Quantity:
Sample,1 Pc(5 Square Meters)
Price:
Based on Gerber Files
Standard Packaging:
Packed As Per Customer
Delivery Time:
NA
Payment Terms:
,T/T,Western Union
Supply Ability:
100000㎡/Month
Product Details
Highlight:
Custom multilayer PCB for embedded systems
,BGA compatible multilayer circuit board
,RoHS compliant multilayer PCB board
Pcb:
Multi-layer Circuit Board
Material:
FR4
Pcba Service:
Provide
Pcba Standard:
IPC Class II
Pth:
+/- 0.075mm
Impedance Control:
±10% Or 5%
Thickness:
0.2mm-5.0mm
Panel Size:
Customization
Surface:
ENIG/HASL,OSP
Test Way:
Probe Test / E-test
Quotation Request:
Gerber Files Or BOM List
Character:
White,Black,Yellow,Red
Product Description
Compact & Reliable Multi-Layer PCB with ENIG Surface Treatment
This multi‑layer PCB is built with advanced lamination and precision drilling techniques, creating a compact yet highly reliable circuit structure. Its multiple layers enable efficient separation of high‑speed signals, power, and ground paths, while the ENIG surface finish delivers excellent solder joint strength and resistance to oxidation.
In which fields can this type of board be applied?:
- Industrial Control:PLCs, CNC machines, and factory automation systems.
- Telecommunications:Routers, switches, and network communication equipment.
- Embedded Systems:Single-board computers and control modules.
- Test Equipment:Oscilloscopes and data acquisition devices.
- Medical Devices:Patient monitors and diagnostic instruments.
- Automotive Electronics:Car infotainment and engine control units.
- Aerospace:Avionics and communication systems.
- Consumer Electronics:Smart home devices and IoT products.
How to order multi-layer boards?:
Getting your custom PCB or PCBA is easy! Just send us:
• Gerber files (RS-274X)
• BOM (if you need assembly)
• Impedance & stack-up details (optional)
• Testing requirements (TDR, network analyzer, etc.)
We’ll analyze your design and reply in 24 hours with:
✔ Free quotation
✔ Professional DFM report
✔ Expert material advice
Start your project today!
