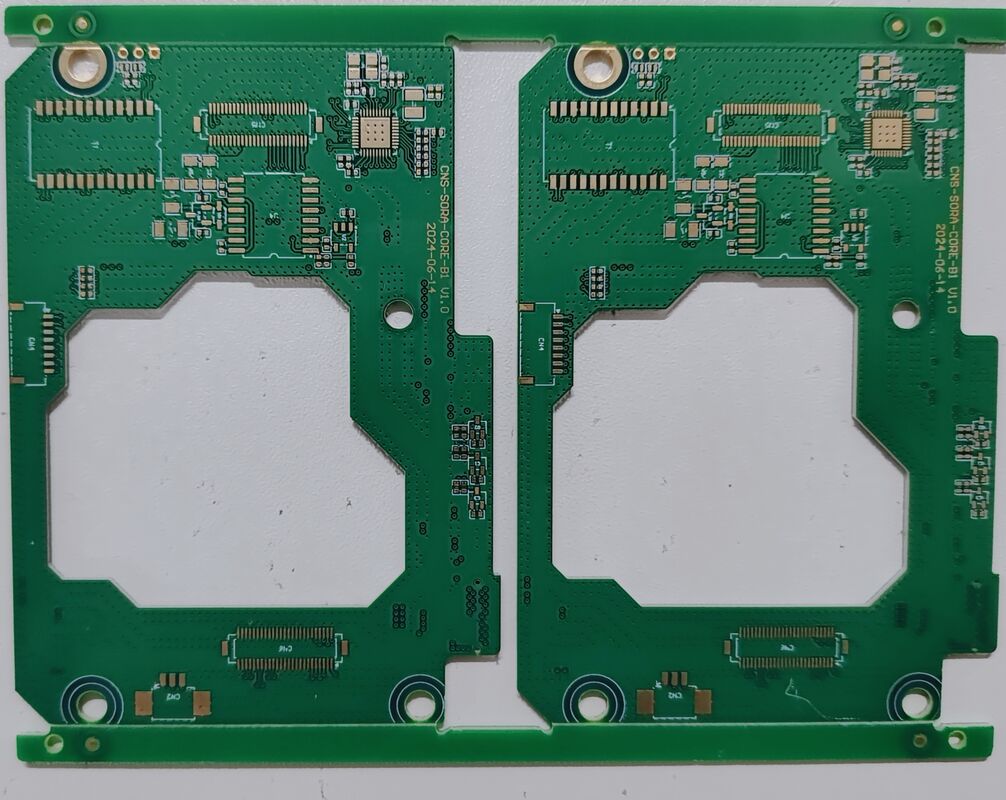

Multi-Layer Printed Circuit Board with BGA Pad Suitable for Tailored Electronic Device
Multi-Layer PCB with BGA pad
,Tailored electronic device PCB
,Multilayer printed circuit board
Key Materials Used in High‑Quality Multilayer PCB Boards:
The material composition of the Multilayer PCB Board is another significant aspect contributing to its superior quality and performance. It is manufactured using high-grade materials including FR4, Rogers, and Polyimide. FR4 is widely recognized for its excellent mechanical strength and electrical insulation properties, making it the standard choice for many electronic PCB boards. Rogers material is preferred for applications demanding high-frequency performance and low dielectric loss, while Polyimide offers exceptional thermal stability and flexibility, ideal for flexible or high-temperature environments.
Technical Parameters:
| Impedance Control | ±10% Or 5% |
| Pth | ±0.075mm |
| Layer | 2/4/6/8/10L |
| Thickness | 1.6/1.2/1.0/0.8mm or customized |
| SMT Technology | SMD, BGA, DIP, Etc. |
| Min.line Width | 3Mil |
| Max Board Size | 528*600mm |
| Min.hole Size | 0.1mm |
| Copper Overall | 0.5-5oz |
| Routing | +/-0.1mm |
FAQ:
Q1: What certifications does the Xingqiang Multilayer PCB Board have?
A1: The Xingqiang Multilayer PCB Board is certified with ROSH, CE, ISO, UL, and IATF, ensuring high quality and compliance with international standards.
Q2: What is the minimum order quantity for the Xingqiang Multilayer PCB Board?
A2: The minimum order quantity is a sample or 1 piece, which corresponds to 5 square meters.
Q3: Where is the Xingqiang Multilayer PCB Board manufactured?
A3: The Xingqiang Multilayer PCB Board is produced in China.
Q4: What payment methods are accepted for purchasing the Xingqiang Multilayer PCB Board?
A4: Payment can be made via T/T (Telegraphic Transfer) or Western Union.
Q5: How is the Xingqiang Multilayer PCB Board packaged for delivery?
A5: We typically use vacuum packaging and cardboard boxes for packaging, mainly depending on your requirements.
Factory showcase
PCB Quality Testing
Certificates and Honors
-
CThe board demonstrated stable performance during subsequent cleaning processes; the green solder mask layer exhibited no discoloration or peeling, demonstrating excellent chemical stability.
-
PImpedance control is very professional, with measured differential pair impedance deviation within 5%, ensuring stable high-frequency signal transmission.
-
EIt has low long-term operating costs, low failure rate, and high cost-effectiveness.
