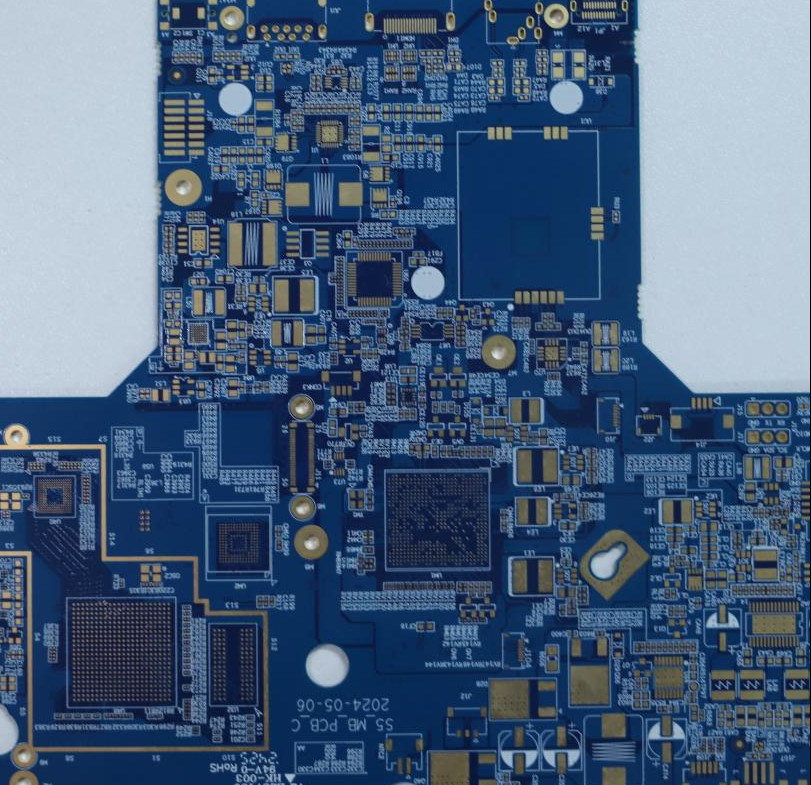

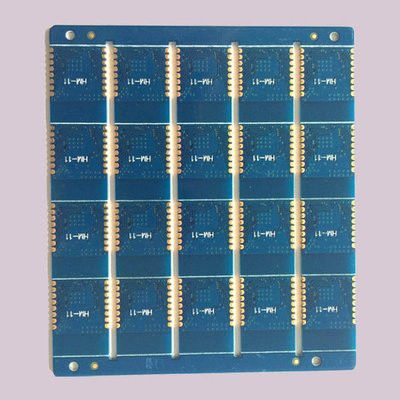

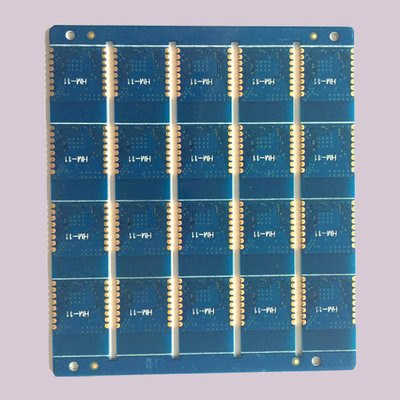

Lightweight Blue Double Sided PCB Board HASL Surface Finish Customized Service
Product Details:
| Place of Origin: | China |
| Brand Name: | xingqiang |
| Certification: | ISO 9001 / RoHS /UL / IATF 16949 (automotive) |
| Model Number: | Varies by goods condition |
Payment & Shipping Terms:
| Minimum Order Quantity: | Sample,1 pc(5 square meters) |
|---|---|
| Price: | Based on Gerber Files |
| Delivery Time: | NA |
| Payment Terms: | ,T/T,Western Union |
| Supply Ability: | 100000㎡/Month |
|
Detail Information |
|||
| Pcb Name: | Double Sided Blue Glue PCB | Material: | FR4 |
|---|---|---|---|
| Legend Color: | White | Cooper Overall: | 0.5-5oz |
| Board Thinkness: | 0.2-5.0mm | PCB Test: | 100% E-Test |
| Board Size: | Customizable | Facrication Information: | Gerber Or BOM List |
| Finish: | HAS/ Lead Free/ ENIG/ OSP/... | Soldermask: | Green/ White/ Black/ Blue/ Yellow |
| Highlight: | Blue Glue Double Sided PCB Board,HASL Finish Double Sided PCB Board |
||
Product Description
Lightweight Double Sided Blue Glue PCB: Ideal for Demanding Applications:
The double-sided blue glue PCB is a versatile, reliable, and lightweight circuit board that outperforms single-sided boards in design flexibility and layout efficiency. Made with premium materials and advanced manufacturing techniques, it meets top industry standards for durability and supports diverse surface finishes (including HASL, lead-free, gold, OSP) for strong solderability and corrosion resistance. Its dual-sided structure enables high routing density and flexible component placement, making it ideal for demanding applications across automotive, aerospace, telecommunications, and consumer electronics industries.
Technical Parameters:
| Board Thickness | 1.6/1.2/1.0/0.8mm or Customized |
| Legend Color | White |
| Soldermask | Green/ White/ Black/ Blue/ Yellow |
| Type | Offline |
| Silk Screen | White |
| Finish | HASL/ Lead Free/Gold/OSP/... |
| Min. Hole Size | 0.1mm |
| Feature | Lightweight |
| Min. line Spacing | 0.075 |
Main Application Scenarios:
1.Automotive electronics
Suitable for designing compact, high-reliability circuits in automotive components, where durability and stable performance under various working conditions are required.
2. Aerospace industry
Its lightweight feature and compliance with strict industry standards make it ideal for aerospace equipment, where weight control and long-term reliability are critical factors.
3. Telecommunications sector
Meets the demand for high routing density and flexible component placement in telecom devices, supporting the stable operation of communication systems.
4. Consumer electronics
Applicable to both complex and simple circuit designs in consumer electronic products, providing a cost-effective and high-performance PCB solution.
