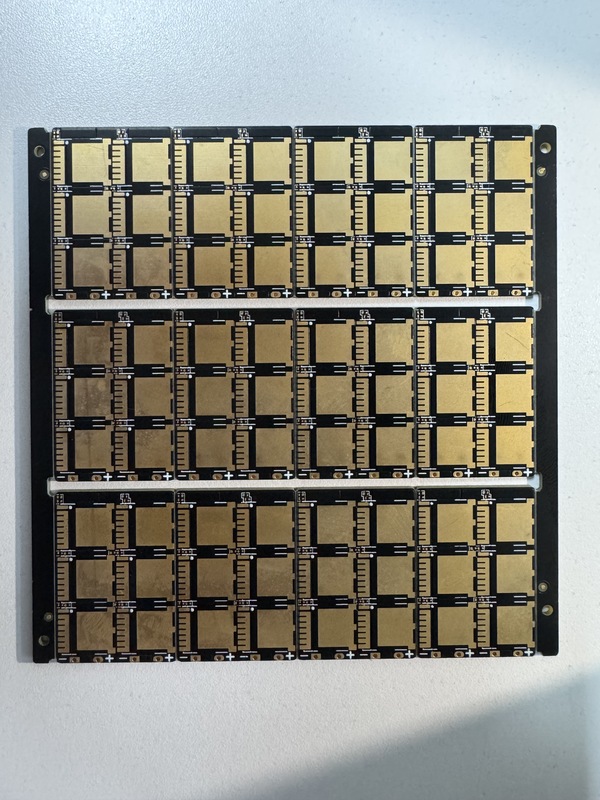

PC Drone Perawatan ENIG Kustom Dengan Ketebalan 0,2-5,0mm untuk Aplikasi UAV
Tempat Asal:
CINA
Nama Merek:
UAV PCB
Sertifikasi:
ISO 9001 / RoHS /UL / IATF 16949 (automotive)
Nomor Model:
Sesuai Model Pelanggan
Jumlah Pesanan Minimum:
Sampel, 1 buah (5 meter persegi)
Harga:
Based on Gerber Files
Kemasan standar:
Karton Atau Sesuai Permintaan Pelanggan
Waktu Pengiriman:
TIDAK
Ketentuan Pembayaran:
T/T, Western Union
Kemampuan Pasokan:
100000㎡/bulan
Detail Produk
Menyoroti:
Papan PCB Drone Ketebalan 0.8mm
,White Silkscreen Drone PCB Board
PCB Name:
PCB UAV khusus
Silkscreen:
Putih
Min. Trace Spacing:
3 juta
Copper Overall:
0,5-5oz
PCBA:
Mendukung
Quality Standard:
IPC Kelas 2
Layers:
1-30 lapisan
Surface Finish:
HASL/OSP/ENIG
Max.Board Size:
528mm*600m
Quotation:
Daftar Gerber atau BOM (Pcba)
Deskripsi Produk
PCB UAV yang dapat disesuaikan untuk fotografi udara & pengawasan:
KitaPCB UAVDibangun untuk tuntutan industri yang ketat, memberikan presisi tingkat atas, kualitas dan keandalan.pemetaan dan pengawasanSangat dapat disesuaikan, dapat disesuaikan dengan skenario tertentu untuk memaksimalkan efisiensi operasional dan kemampuan beradaptasi.
Parameter teknis:
| Min. Jarak jejak | 3 juta |
| Bahan | FR-4 |
| Ukuran lubang minimal | 0.1mm |
| Ketebalan Tembaga | 0.5-5oz |
| Perbaikan permukaan | HASL/OSP/ENIG |
| Topeng Solder | Hijau/ Hitam/ Putih/ Biru/ Merah |
| Standar Kualitas | Kelas 2 IPC |
| Serat sutra | putih, hitam, kuning |
| Ketebalan papan | 1.6/1.2/1.0/0.8mm atau disesuaikan |
Pengaturan:
Silakan kirimkan kami:
- File Gerber (RS-274X)
- BOM (jika diperlukan PCBA)
- Persyaratan impedansi & stack-up (jika tersedia)
- Persyaratan pengujian (TDR, analis jaringan, dll.)
Dicatat:Biasanya, file Gerber mencakup: Jenis PCB, ketebalan, warna tinta, proses perawatan permukaan, dan jika pemrosesan SMT diperlukan, Anda dapat memberikan BOM komponen dan diagram penunjukan referensi, dll.
Kami akan membalas dalam waktu 24 jam dengan penawaran gratis, laporan DFM, dan rekomendasi bahan.
Pameran pabrik
Pengujian Kualitas PCB
Sertifikat dan Penghargaan
Peringkat Keseluruhan
5 BINTANG
50%
Bintang 4
50%
3 Bintang
0
Bintang 2
0
1 bintang
0
Semua Ulasan
-
LThick copper plating and immersion gold finish ensure low temperature rise even with high current.
-
II ordered 5 pieces, but received 7, which was a nice bonus. However, the tin plating was not very uniform in some areas, and I needed to apply extra flux during soldering to ensure a secure connection.
